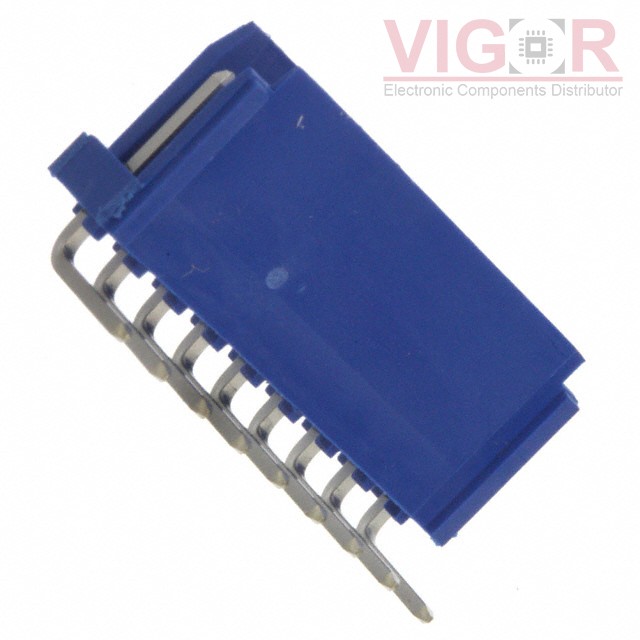

76382-409LF

76382-409LF

Image is for reference,
please contact us to get the real picture

Part No :

76382-409LF

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
CONN HEADER R/A 9POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Oct 06 - Oct 10 2025
DataSheet
76382-409LF PDF
Availability
64 pieces
Unit Price
$1.14000

Current price of 76382-409LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

76382-409LF Specifications
Type Description
Series:Dubox™
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:9
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.197" (5.00mm)
Contact Length - Post:0.134" (3.40mm)
Overall Contact Length:-
Insulation Height:0.209" (5.30mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:78.7µin (2.00µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyester, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Blue
Current Rating (Amps):-
Voltage Rating:-
