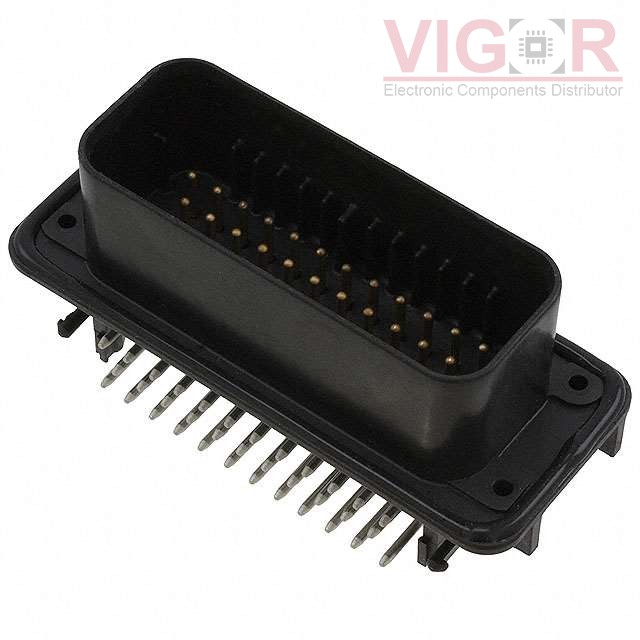

1-776163-1

Image is for reference,
please contact us to get the real picture

Part No :: 1-776163-1

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER R/A 35POS 4MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 1-776163-1 PDF

Availability: 0 pieces

Unit Price: ~~$20.06000~~

Current price of 1-776163-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1-776163-1 Specifications

Type	Description
Series:	AMPSEAL
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.157" (4.00mm)
Number of Positions:	35
Number of Rows:	3
Row Spacing - Mating:	0.157" (4.00mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Panel Mount, Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	-
Contact Shape:	Circular
Contact Finish - Mating:	Gold-Palladium
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	-
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT), Glass Filled
Features:	Board Guide, Sealed
Operating Temperature:	-40°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	250VAC
