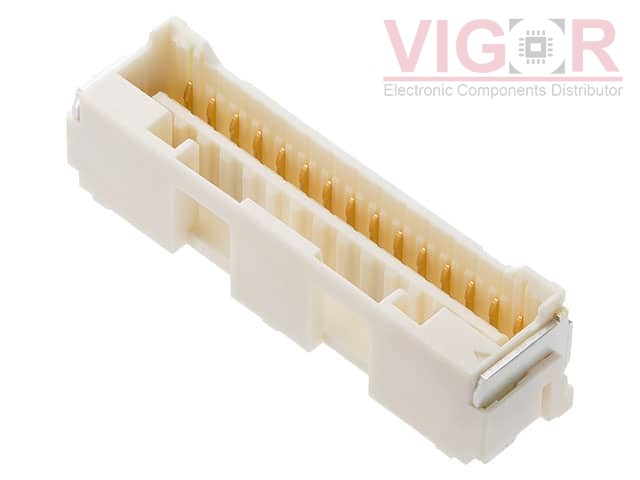

5054051570

Part No :: 5054051570

Manufacturer: Woodhead - Molex

Description: CONN RCPT 15POS 0.059 GOLD SMD

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: 5054051570 PDF

Availability: 0 pieces

Unit Price: ~~$1.00898~~

Current price of 5054051570 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5054051570 Specifications

Type	Description
Series:	CLIK-Mate 505405
Package:	Tape & Reel (TR)
Part Status:	Discontinued at Digi-Key
Connector Type:	Receptacle
Contact Type:	Forked
Style:	Board to Cable/Wire
Number of Positions:	15
Number of Positions Loaded:	All
Pitch - Mating:	0.059" (1.50mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Latch Holder
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Insulation Color:	Beige
Insulation Height:	0.285" (7.25mm)
Contact Length - Post:	-
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Solder Retention
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	100V
