M20-7820442

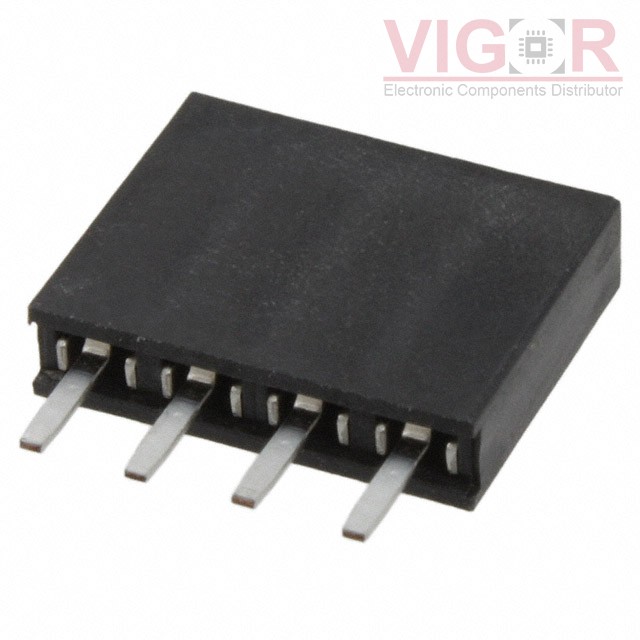

Product image
Product thumb
Part No :

M20-7820442

Manufacturer
Harwin
VIGOR # :

3125293

Description
CONN RCPT 4POS 0.1 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
DataSheet
M20-7820442 PDF
Country of origin
Confirming
Date code
TBC
ads
M20-7820442 Specifications
Type Description
Series:M20
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:4
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Insulation Color:Black
Insulation Height:0.335" (8.51mm)
Contact Length - Post:0.118" (3.00mm)
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:11.04mm, 12.63mm
Ingress Protection:-
Features:-
Current Rating (Amps):3A
Voltage Rating:1000V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: Available on Request ?
Shipped from
HK warehouse
Expected Shipping Date
Awaiting confirmation
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.8600 $0.86
54 $0.6838 $36.93
108 $0.6540 $70.64
540 $0.5351 $288.96
1026 $0.4756 $488.02
5022 $0.4162 $2 090.16
10044 $0.3954 $3 971.30

Current price of M20-7820442 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
310-93-110-41-001000

310-93-110-41-001000

CONN RCPT 10POS 0.1 GOLD PCB

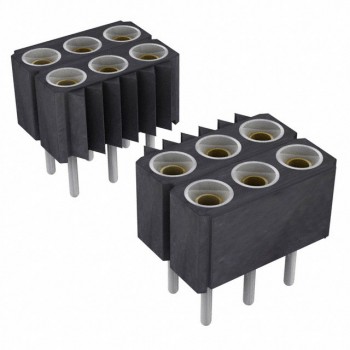

410-87-315-01-640101
