M55-6012642R

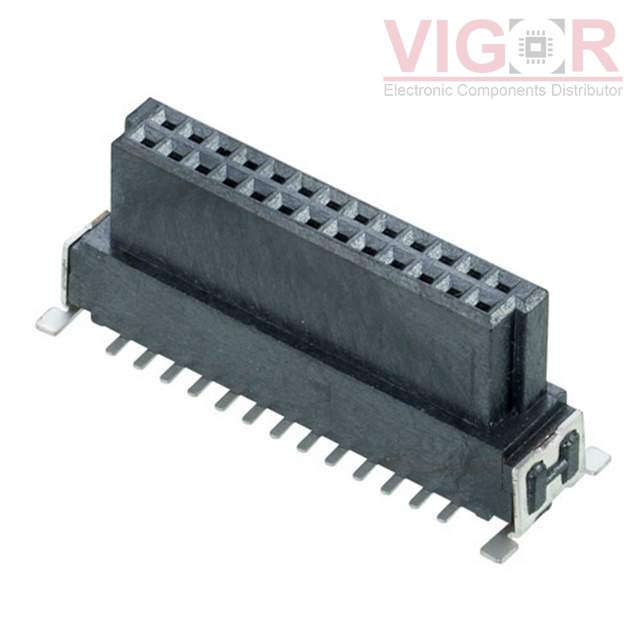

Product image
Product thumb
Part No :

M55-6012642R

Manufacturer
Harwin
VIGOR # :

3130321

Description
CONN RCPT 26POS 0.05 GOLD SMD
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
DataSheet
M55-6012642R PDF
Country of origin
-
Date code
-
ads
M55-6012642R Specifications
Type Description
Series:Archer Kontrol
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board
Number of Positions:26
Number of Positions Loaded:All
Pitch - Mating:0.050" (1.27mm)
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Holder
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:1.00µin (0.025µm)
Insulation Color:Black
Insulation Height:0.356" (9.05mm)
Contact Length - Post:-
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:10.8mm, 12.3mm, 13.9mm
Ingress Protection:-
Features:Board Guide, Pick and Place, Solder Retention
Current Rating (Amps):1.2A
Voltage Rating:100VAC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 583
Shipped from
HK warehouse
Expected Shipping Date
Jun 01 - Jun 05 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.1600 $2.16
400 $1.4098 $563.92
800 $1.2614 $1 009.12
1200 $1.1130 $1 335.60
2000 $1.0759 $2 151.80
2800 $1.0388 $2 908.64
10000 $0.9646 $9 646.00

Current price of M55-6012642R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
855-83-084-10-001101

855-83-084-10-001101

CONN SOCKET 84POS 0.05 GOLD PCB

CLM-113-02-F-D-K-TR

CLM-113-02-F-D-K-TR

CONN RCPT 26POS 0.039 GOLD SMD

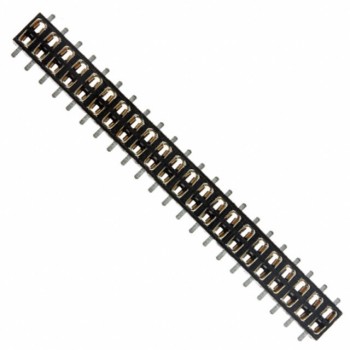

153244-2020-RB
