FX30B-5S-3.81DSA

FX30B-5S-3.81DSA

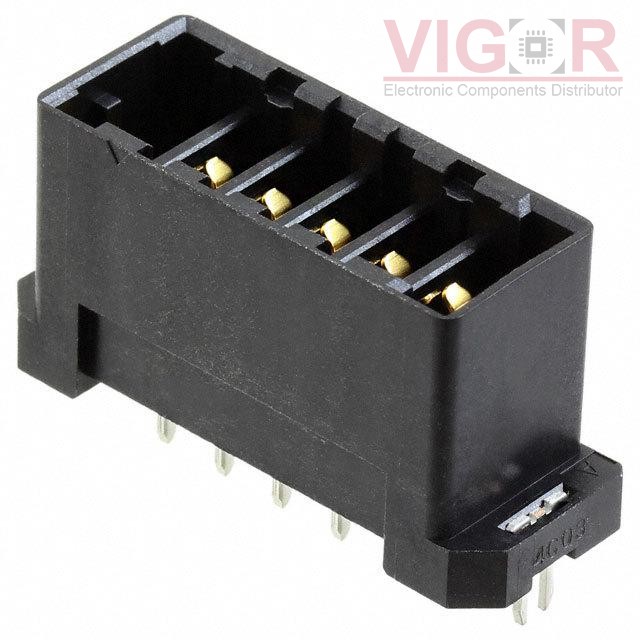

Image is for reference,
please contact us to get the real picture

Part No :

FX30B-5S-3.81DSA

Manufacturer
Hirose
Description
CONN RCPT 5POS 0.15 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Oct 21 - Oct 25 2025
DataSheet
FX30B-5S-3.81DSA PDF
Availability
282 pieces
Unit Price
$5.05000

Current price of FX30B-5S-3.81DSA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FX30B-5S-3.81DSA Specifications
Type Description
Series:FunctionMax™ FX30B
Package:Tray
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Blade Socket
Style:Board to Board
Number of Positions:5
Number of Positions Loaded:All
Pitch - Mating:0.150" (3.81mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.90µin (0.099µm)
Insulation Color:Black
Insulation Height:0.630" (16.00mm)
Contact Length - Post:0.130" (3.30mm)
Operating Temperature:-55°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:20mm, 25mm, 30mm
Ingress Protection:-
Features:Board Guide, Board Lock
Current Rating (Amps):13A
Voltage Rating:250V
