M80-8500842

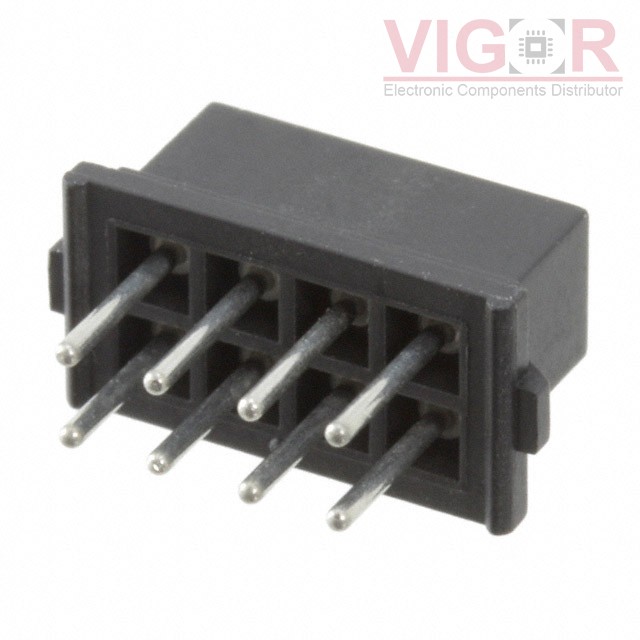

Product image
Product thumb
Part No :

M80-8500842

Manufacturer
Harwin
VIGOR # :

3133972

Description
CONN RCPT 8POS 0.079 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
DataSheet
M80-8500842 PDF
Country of origin
Confirming
Date code
TBC
ads
M80-8500842 Specifications
Type Description
Series:Datamate L-Tek
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:8
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:12.0µin (0.30µm)
Insulation Color:Black
Insulation Height:0.202" (5.14mm)
Contact Length - Post:0.118" (3.00mm)
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:7.23mm, 7.85mm
Ingress Protection:-
Features:-
Current Rating (Amps):-
Voltage Rating:800V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 20
Shipped from
HK warehouse
Expected Shipping Date
Nov 16 - Nov 20 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $4.2800 $4.28
21 $4.1037 $86.18
105 $3.4198 $359.08
504 $2.9068 $1 465.04
1008 $2.4794 $2 499.19

Current price of M80-8500842 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
SSQ-144-03-T-D

SSQ-144-03-T-D

CONN RCPT 88POS 0.1 TIN PCB

5-146138-3

5-146138-3

CONN RCPT 5POS 0.1 GOLD PCB

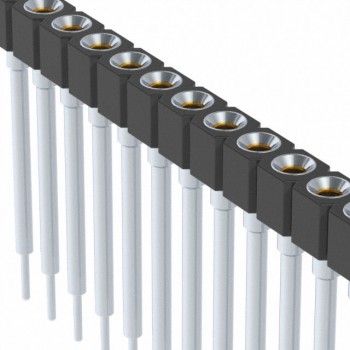

316-93-135-41-001000
