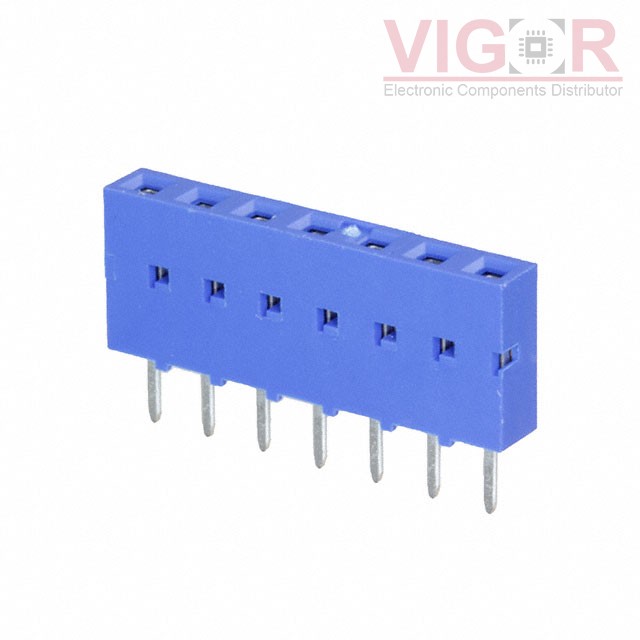

76341-307LF

Part No :: 76341-307LF

Manufacturer: Storage & Server IO (Amphenol ICC)

VIGOR # :: 3140584

Description: CONN RCPT 7POS 0.1 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: 76341-307LF PDF

Current price of 76341-307LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

76341-307LF Specifications

Type	Description
Series:	Dubox™
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	7
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Insulation Color:	Blue
Insulation Height:	0.275" (6.99mm)
Contact Length - Post:	0.114" (2.90mm)
Operating Temperature:	-
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	11.04mm
Ingress Protection:	-
Features:	-
Current Rating (Amps):	-
Voltage Rating:	-
