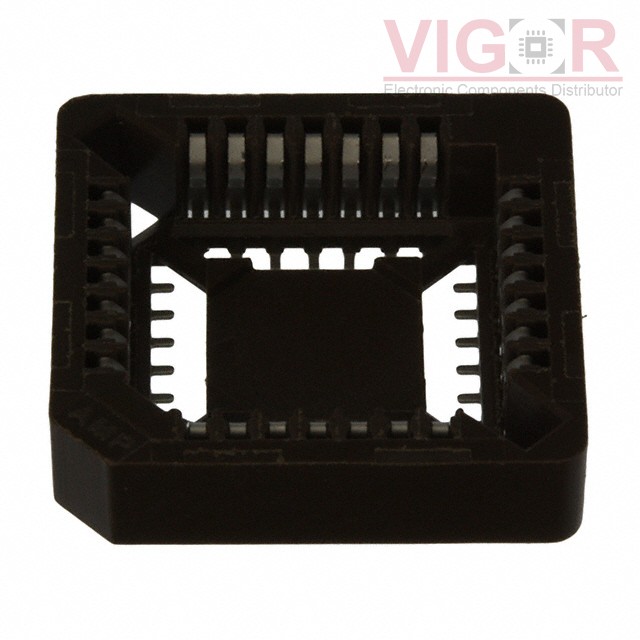

3-822516-2

Image is for reference,
please contact us to get the real picture

Part No :

3-822516-2

Manufacturer
TE Connectivity AMP Connectors
Description
CONN SOCKET PLCC 28POS TIN
Catalog
Sockets for ICs, Transistors
Shipped from
HK warehouse
Expected Shipping Date
Oct 08 - Oct 12 2025
DataSheet
3-822516-2 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 3-822516-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:PLCC
Number of Positions or Pins (Grid):28 (4 x 7)
Pitch - Mating:0.050" (1.27mm)
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Material - Mating:Phosphor Bronze
Mounting Type:Surface Mount
Features:Closed Frame
Termination:Solder
Pitch - Post:0.050" (1.27mm)
Contact Finish - Post:Tin
Contact Finish Thickness - Post:100.0µin (2.54µm)
Contact Material - Post:Phosphor Bronze
Housing Material:Thermoplastic
Operating Temperature:-
