XW4M-12D1-H1DS

Part No :: XW4M-12D1-H1DS

Manufacturer: Omron Electronics Components

VIGOR # :: 3230956

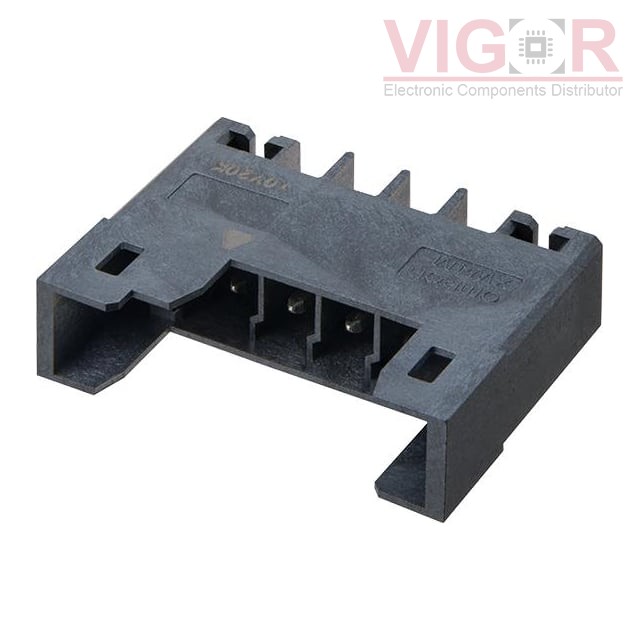

Description: PLUG,SINGLE-ROW,RIGHT-ANGLE,TIN

Catalog: Terminal Blocks - Headers, Plugs and Sockets

DataSheet: XW4M-12D1-H1DS PDF

Country of origin: -

Date code: -

XW4M-12D1-H1DS Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Type:	Header, Male Pins, Shrouded (4 Side)
Number of Positions:	12
Positions Per Level:	12
Number of Levels:	1
Pitch:	0.138" (3.50mm)
Header Orientation:	90°, Right Angle
Plug Wire Entry:	-
Termination Style:	Solder
Mounting Type:	Through Hole
Current - IEC:	8A
Voltage - IEC:	160 A
Current - UL:	8 V
Voltage - UL:	300 V
Wire Gauge or Range - AWG:	-
Wire Gauge or Range - mm²:	-
Color:	Black
Operating Temperature:	-40°C ~ 100°C
Contact Mating Finish:	Tin
Features:	Latches
