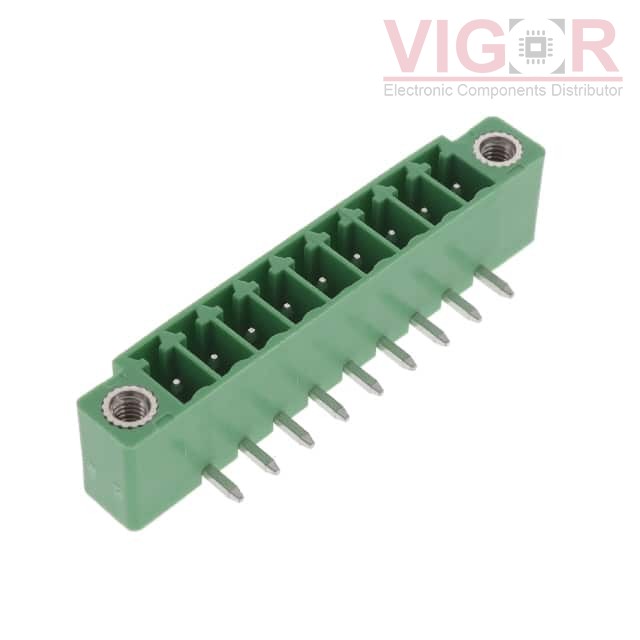

Product image
Product thumb
Part No :

0395066009

Manufacturer
Woodhead - Molex
VIGOR # :

3232103

Description
TERM BLOCK HDR 9POS 90DEG 3.5MM
Catalog
Terminal Blocks - Headers, Plugs and Sockets
DataSheet
0395066009 PDF
Country of origin
-
Date code
-
ads
0395066009 Specifications
Type Description
Series:Eurostyle ESE 39506
Package:Bulk
Part Status:Active
Type:Header, Male Pins, Shrouded (4 Side)
Number of Positions:9
Positions Per Level:9
Number of Levels:1
Pitch:0.138" (3.50mm)
Header Orientation:90°, Right Angle
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Through Hole
Current - IEC:-
Voltage - IEC:-
Current - UL:8 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:Green
Operating Temperature:-40°C ~ 105°C
Contact Mating Finish:Tin
Features:Mating Flange
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1728
Shipped from
HK warehouse
Expected Shipping Date
Apr 28 - May 02 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $3.1200 $3.12
10 $2.4074 $24.07
25 $2.2441 $56.10
50 $2.0360 $101.80
100 $1.9908 $199.08
250 $1.7645 $441.14
500 $1.6288 $814.41
1000 $1.4931 $1 493.08
5000 $1.3347 $6 673.60

Current price of 0395066009 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
