1001580000

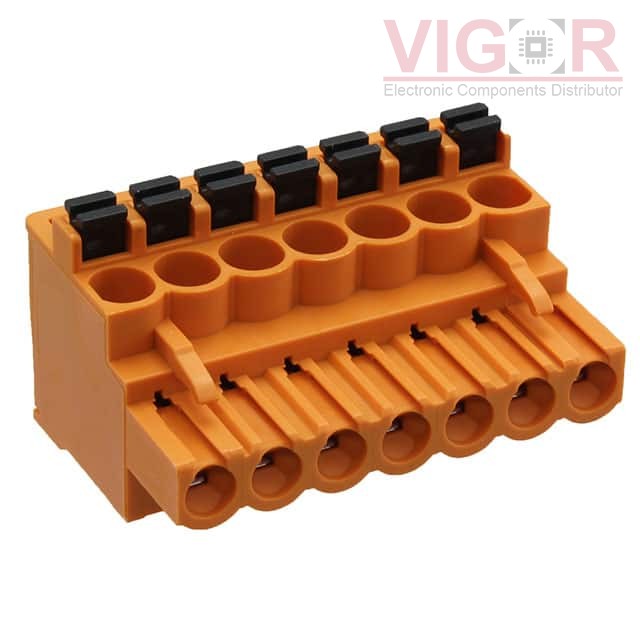

Product image
Product thumb
Part No :

1001580000

Manufacturer
Weidmuller
VIGOR # :

3235519

Description
TERM BLOCK PLUG 7POS 5.08MM
Catalog
Terminal Blocks - Headers, Plugs and Sockets
DataSheet
1001580000 PDF
Country of origin
-
Date code
-
ads
1001580000 Specifications
Type Description
Series:Omnimate BL
Package:Box
Part Status:Active
Type:Plug, Female Sockets
Number of Positions:7
Positions Per Level:7
Number of Levels:1
Pitch:0.200" (5.08mm)
Header Orientation:-
Plug Wire Entry:90°
Termination Style:Screwless - Leg Spring, Push-In Spring
Mounting Type:Free Hanging (In-Line)
Current - IEC:24A
Voltage - IEC:400 V
Current - UL:18.5 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:12-26 AWG
Wire Gauge or Range - mm²:0.2-2.5mm²
Color:Orange
Operating Temperature:-50°C ~ 100°C
Contact Mating Finish:Tin
Features:Retention Latches (Wire Side)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 96
Shipped from
HK warehouse
Expected Shipping Date
May 28 - Jun 01 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $7.6700 $7.67
10 $6.0472 $60.47
48 $5.7521 $276.10
96 $5.2212 $501.24
144 $5.0147 $722.12
288 $4.4247 $1 274.32
528 $4.1297 $2 180.50
1008 $3.8348 $3 865.44

Current price of 1001580000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
