TBP01R1W-508-20BE

TBP01R1W-508-20BE

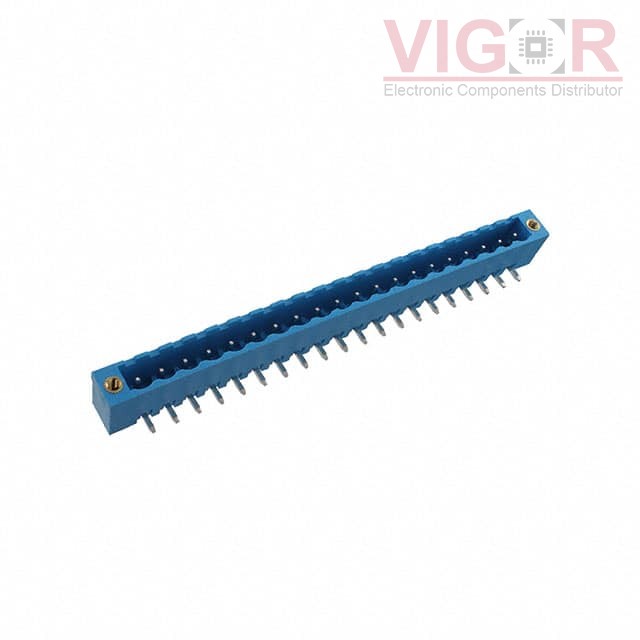

Image is for reference,
please contact us to get the real picture

Part No :

TBP01R1W-508-20BE

Manufacturer
CUI Devices
Description
TERMINAL BLOCK, PLUGGABLE, W SCR
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Oct 18 - Oct 22 2025
DataSheet
TBP01R1W-508-20BE PDF
Availability
636 pieces
Unit Price
$2.77000

Current price of TBP01R1W-508-20BE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TBP01R1W-508-20BE Specifications
Type Description
Series:TBP01R1W-508
Package:Box
Part Status:Active
Type:Header, Male Pins, Shrouded (4 Side)
Number of Positions:20
Positions Per Level:20
Number of Levels:1
Pitch:0.200" (5.08mm)
Header Orientation:90°, Right Angle
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Through Hole
Current - IEC:20A
Voltage - IEC:320 V
Current - UL:16 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:Blue
Operating Temperature:-40°C ~ 105°C
Contact Mating Finish:Tin
Features:Mating Flange
