XW4N-20D2-S

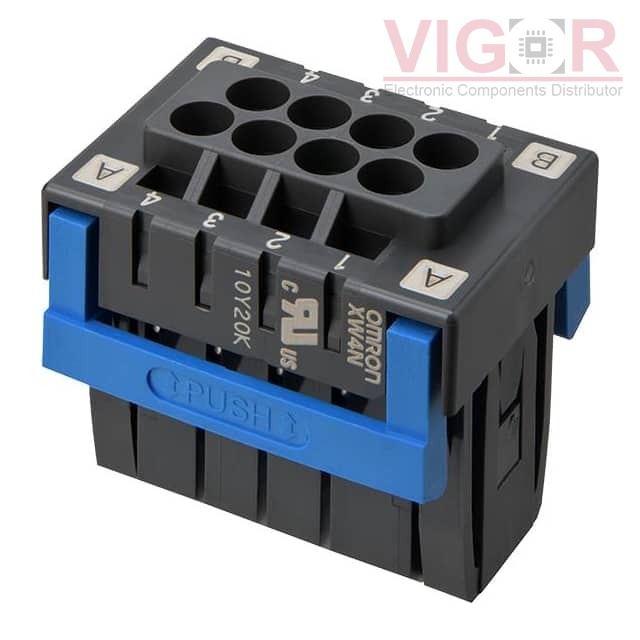

Image is for reference,
please contact us to get the real picture

Part No :: XW4N-20D2-S

Manufacturer: Omron Electronics Components

Description: SOCKET,DOUBLE-ROW,,GOLD,

Catalog: Terminal Blocks - Headers, Plugs and Sockets

DataSheet: XW4N-20D2-S PDF

Availability: 0 pieces

Unit Price: ~~$19.00000~~

Current price of XW4N-20D2-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

XW4N-20D2-S Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Type:	Plug, Female Sockets
Number of Positions:	20
Positions Per Level:	10
Number of Levels:	2
Pitch:	0.138" (3.50mm)
Header Orientation:	-
Plug Wire Entry:	180°
Termination Style:	Screwless - Leg Spring, Push-In Spring
Mounting Type:	Free Hanging (In-Line)
Current - IEC:	8A
Voltage - IEC:	160 A
Current - UL:	8 V
Voltage - UL:	300 V
Wire Gauge or Range - AWG:	16-24 AWG
Wire Gauge or Range - mm²:	0.2-1.5mm²
Color:	Black
Operating Temperature:	-40°C ~ 100°C
Contact Mating Finish:	Tin
Features:	Lever Actuated
