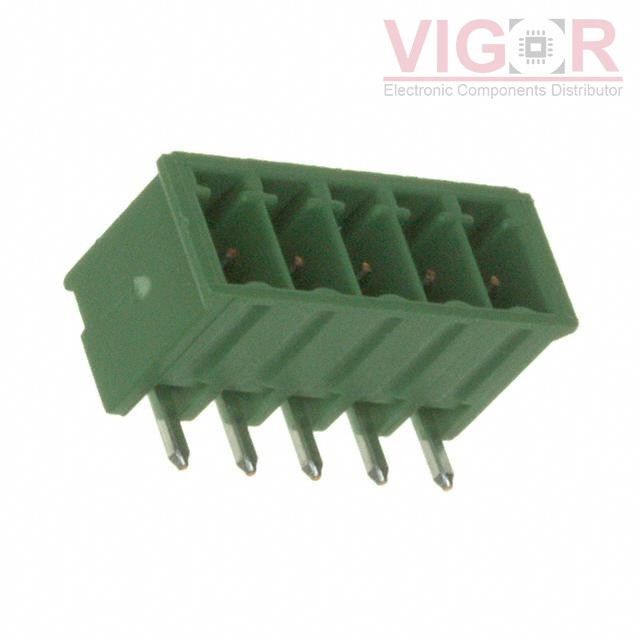

284512-5

284512-5

Image is for reference,
please contact us to get the real picture

Part No :

284512-5

Manufacturer
TE Connectivity AMP Connectors
Description
TERM BLOCK HDR 5POS 90DEG 3.5MM
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Oct 13 - Oct 17 2025
DataSheet
284512-5 PDF
Availability
4320 pieces
Unit Price
$1.91000

Current price of 284512-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

284512-5 Specifications
Type Description
Series:Buchanan
Package:Bulk
Part Status:Active
Type:Header, Male Pins, Shrouded (4 Side)
Number of Positions:5
Positions Per Level:5
Number of Levels:1
Pitch:0.138" (3.50mm)
Header Orientation:90°, Right Angle
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Through Hole
Current - IEC:-
Voltage - IEC:-
Current - UL:11 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:Green
Operating Temperature:-40°C ~ 110°C
Contact Mating Finish:Tin
Features:-
