1761542001

1761542001

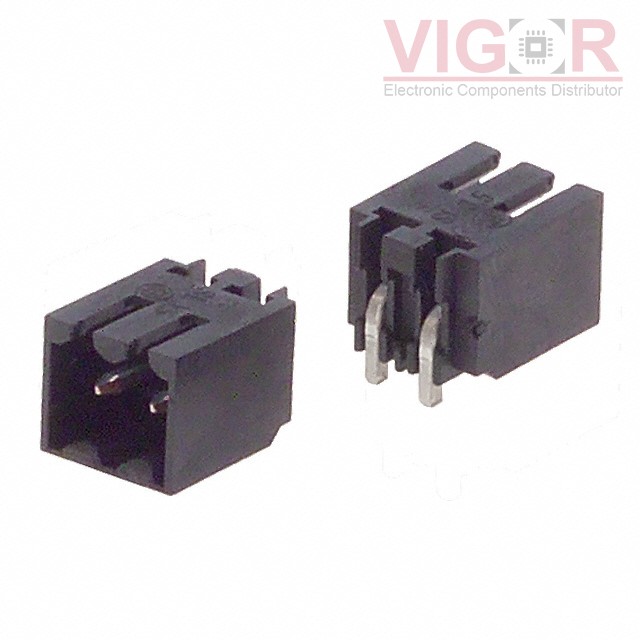

Image is for reference,
please contact us to get the real picture

Part No :

1761542001

Manufacturer
Weidmuller
Description
TERM BLOCK HDR 2POS 90DEG 3.5MM
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Oct 08 - Oct 12 2025
DataSheet
1761542001 PDF
Availability
1588 pieces
Unit Price
$1.56000

Current price of 1761542001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1761542001 Specifications
Type Description
Series:Omnimate SL
Package:Bulk
Part Status:Active
Type:Header, Male Pins, Shrouded (4 Side)
Number of Positions:2
Positions Per Level:2
Number of Levels:1
Pitch:0.138" (3.50mm)
Header Orientation:90°, Right Angle
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Through Hole
Current - IEC:15A
Voltage - IEC:320 V
Current - UL:10 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:Black
Operating Temperature:-50°C ~ 100°C
Contact Mating Finish:Tin
Features:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 1775942001

1775942001

TERM BLOCK HDR 4POS VERT 5.08MM
HOT EDZ1200/3

EDZ1200/3

TERM BLOCK PLUG 3POS STR 5.08MM

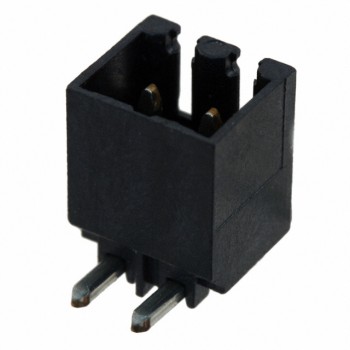

HOT 1841630000
