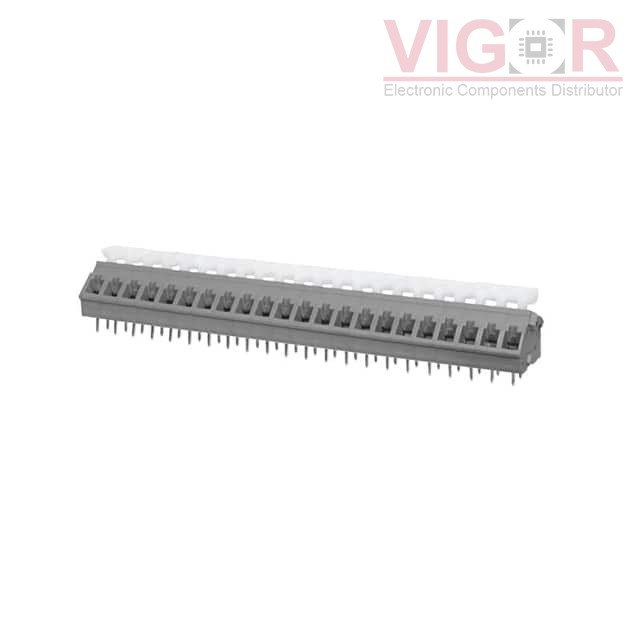

TBL005A-500-22GY-2WT

Part No :: TBL005A-500-22GY-2WT

Manufacturer: CUI Devices

VIGOR # :: 3243608

Description: TERMINAL BLOCK, SCREWLESS, 5.00,

Catalog: Terminal Blocks - Wire to Board

DataSheet: TBL005A-500-22GY-2WT PDF

Country of origin: -

Date code: -

TBL005A-500-22GY-2WT Specifications

Type	Description
Series:	TBL005A-500
Package:	Tray
Part Status:	Active
Number of Levels:	1
Positions Per Level:	22
Pitch:	0.197" (5.00mm)
Mating Orientation:	45° (135°) Angle with Board
Current:	15 A
Voltage:	300 V
Wire Gauge:	14-26 AWG
Mounting Type:	Through Hole
Wire Termination:	Screwless - Push Button Clamp
Features:	Interlocking (Side), Push Button Actuated
Color:	Gray

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 86

Shipped from

HK warehouse

Expected Shipping Date

Nov 12 - Nov 16 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$7.0000~~	~~$7.00~~

Current price of TBL005A-500-22GY-2WT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
