Part No :

7620-0-34-15-16-27-10-0

Manufacturer
Mill-Max
VIGOR # :

3195430

Description

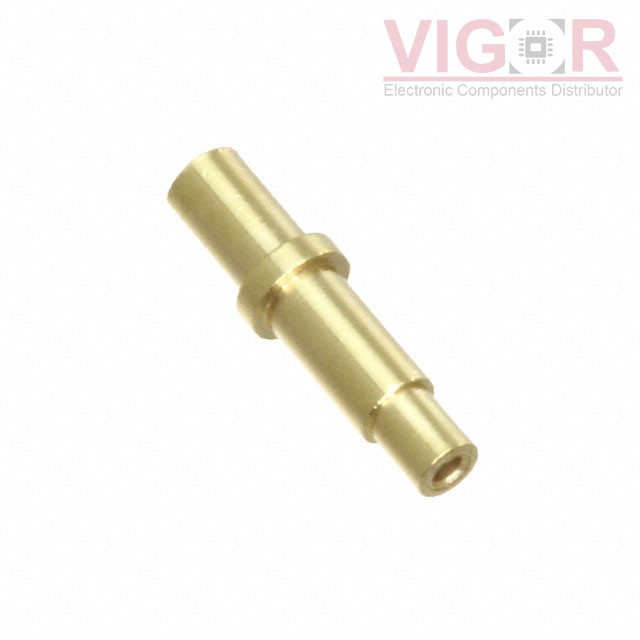

DOUBLE ENDED RECEPTACLE
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
DataSheet
7620-0-34-15-16-27-10-0 PDF
Country of origin
Confirming
Date code
TBC
ads
Type Description
Series:7620
Package:Bulk
Part Status:Active
Tail Type:-
Termination:-
Length - Overall:0.445" (11.30mm)
Accepts Pin Diameter:0.022" ~ 0.034" (0.56mm ~ 0.86mm), 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size:0.025" (0.64mm)
Pin Hole Diameter:0.051" (1.30mm), 0.064" (1.63mm)
Mounting Hole Diameter:-
Flange Diameter:0.125" (3.18mm)
Tail Diameter:-
Socket Depth:0.083" (2.11mm), 0.120" (3.05mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Shipped from
HK warehouse
Expected Shipping Date
Nov 17 - Nov 21 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.1500 $1.15
10 $1.0120 $10.12
25 $0.9526 $23.82
50 $0.9127 $45.63
100 $0.8731 $87.31
250 $0.7937 $198.43
500 $0.7143 $357.17
1000 $0.6350 $634.97
2500 $0.5754 $1 438.60

Current price of 7620-0-34-15-16-27-10-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
