H8501-01

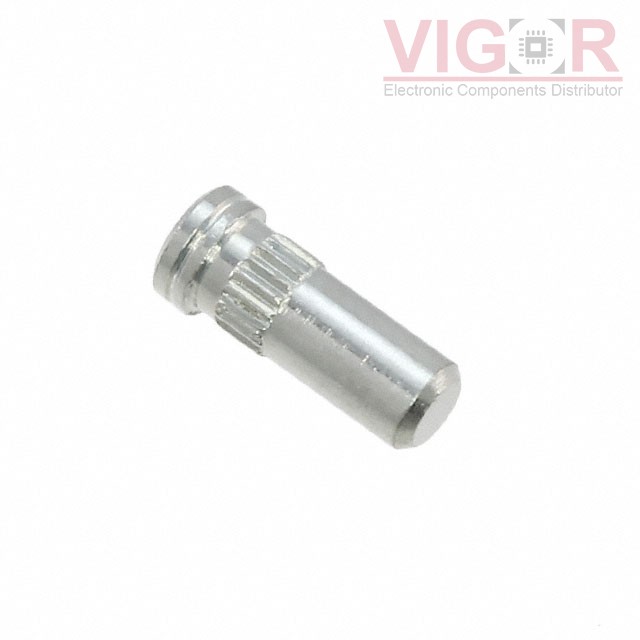

Product image
Product thumb
Part No :

H8501-01

Manufacturer
Harwin
VIGOR # :

3195953

Description
CONN PIN RCPT .023-.033 KNURL
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
DataSheet
H8501-01 PDF
Country of origin
-
Date code
-
ads
H8501-01 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Tail Type:No Tail
Termination:Press-Fit, Knurled
Length - Overall:0.224" (5.69mm)
Accepts Pin Diameter:0.024" ~ 0.033" (0.60mm ~ 0.85mm)
Accepts Square Pin Size:-
Pin Hole Diameter:-
Mounting Hole Diameter:0.075" ~ 0.077" (1.91mm ~ 1.96mm)
Flange Diameter:0.093" (2.36mm)
Tail Diameter:-
Socket Depth:0.183" (4.65mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:5.90µin (0.150µm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1358
Shipped from
HK warehouse
Expected Shipping Date
Jan 18 - Jan 22 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.45 $0.45
10 $0.42 $4.23
25 $0.38 $9.52
50 $0.34 $16.92
100 $0.32 $32.43
250 $0.30 $74.03
500 $0.28 $141.00
1000 $0.23 $232.65
2500 $0.21 $528.75

Current price of H8501-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
