2231-0-00-15-00-00-08-0

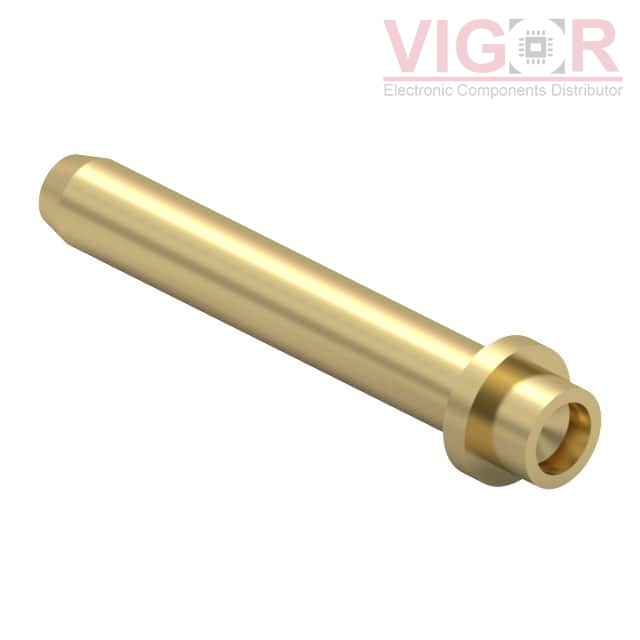

Image is for reference,
please contact us to get the real picture

Part No :: 2231-0-00-15-00-00-08-0

Manufacturer: Mill-Max

Description: .578" LONG SWAGE PIN

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 2231-0-00-15-00-00-08-0 PDF

Availability: 556 pieces

Unit Price: ~~$0.50000~~

Current price of 2231-0-00-15-00-00-08-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2231-0-00-15-00-00-08-0 Specifications

Type	Description
Series:	2231
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.079" (2.01mm) Dia
Pin Size - Below Flange:	0.089" (2.26mm) Dia
Length - Above Flange:	0.500" (12.70mm)
Length - Below Flange:	0.053" (1.35mm)
Length - Overall:	0.578" (14.69mm)
Flange Diameter:	0.124" (3.15mm)
Mounting Hole Diameter:	0.093" (2.36mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	0.031" (0.79mm)
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
