1094-0-05-15-00-00-01-0

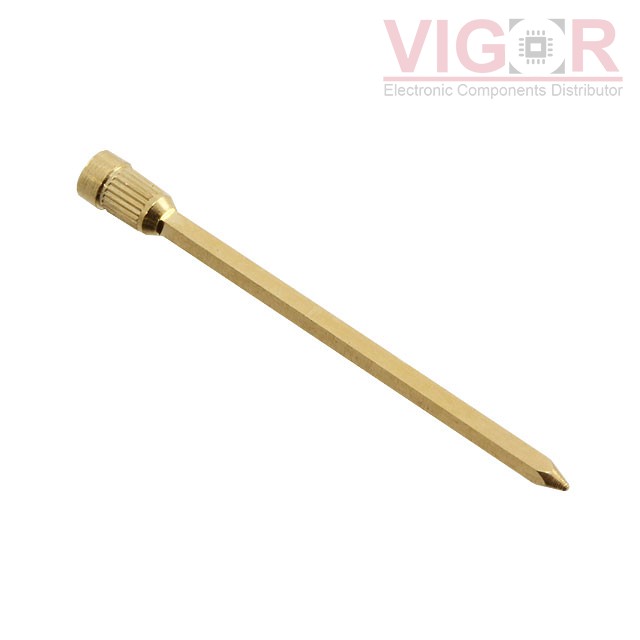

Image is for reference,
please contact us to get the real picture

Part No :: 1094-0-05-15-00-00-01-0

Manufacturer: Mill-Max

Description: CONN PC PIN SQUARE 0.025 GOLD

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 1094-0-05-15-00-00-01-0 PDF

Availability: 2919 pieces

Unit Price: ~~$0.35000~~

Current price of 1094-0-05-15-00-00-01-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1094-0-05-15-00-00-01-0 Specifications

Type	Description
Series:	1094
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.025" (0.64mm) Square
Pin Size - Below Flange:	-
Length - Above Flange:	0.680" (17.27mm)
Length - Below Flange:	-
Length - Overall:	0.710" (18.03mm)
Flange Diameter:	0.065" (1.65mm)
Mounting Hole Diameter:	0.056" (1.42mm)
Mounting Type:	Through Hole
Termination:	Press-Fit, Knurled, Wire Wrap
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
