5909-0-00-15-00-00-03-0

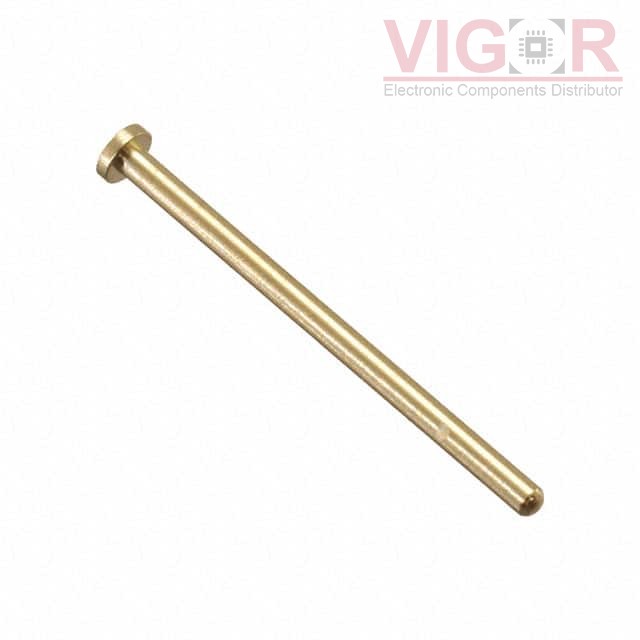

Image is for reference,
please contact us to get the real picture

Part No :: 5909-0-00-15-00-00-03-0

Manufacturer: Mill-Max

Description: SOLDER MOUNT NAIL HEAD PIN

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 5909-0-00-15-00-00-03-0 PDF

Availability: 5126 pieces

Unit Price: ~~$0.64000~~

Current price of 5909-0-00-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5909-0-00-15-00-00-03-0 Specifications

Type	Description
Series:	5909
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End, Nail Head
Pin Size - Above Flange:	0.040" (1.02mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.660" (16.76mm)
Length - Below Flange:	-
Length - Overall:	0.680" (17.27mm)
Flange Diameter:	0.078" (1.98mm)
Mounting Hole Diameter:	0.044" (1.12mm)
Mounting Type:	Through Hole
Termination:	Solder
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
