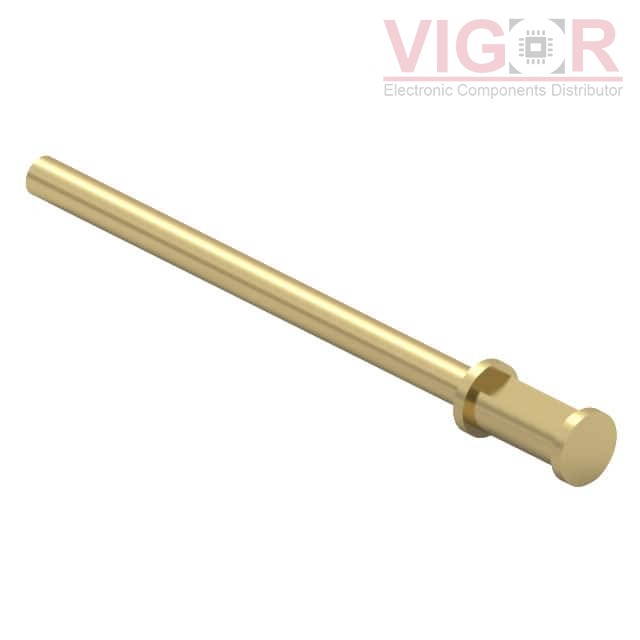

5247-0-00-15-00-00-03-0

Part No :: 5247-0-00-15-00-00-03-0

Manufacturer: Mill-Max

Description: .560" LONG SOLDER PIN

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 5247-0-00-15-00-00-03-0 PDF

Availability: 4119 pieces

Unit Price: ~~$0.28000~~

Current price of 5247-0-00-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5247-0-00-15-00-00-03-0 Specifications

Type	Description
Series:	5247
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.031" (0.79mm) Dia
Pin Size - Below Flange:	0.031" (0.79mm) Dia
Length - Above Flange:	0.450" (11.43mm)
Length - Below Flange:	0.100" (2.54mm)
Length - Overall:	0.560" (14.22mm)
Flange Diameter:	0.058" (1.47mm)
Mounting Hole Diameter:	0.035" (0.89mm)
Mounting Type:	Through Hole
Termination:	Solder
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
