3129-1-00-15-00-00-08-0

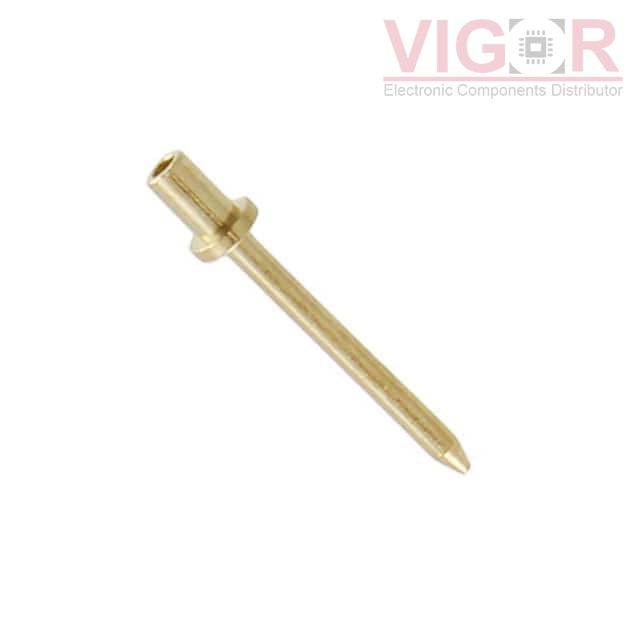

Image is for reference,
please contact us to get the real picture

Part No :: 3129-1-00-15-00-00-08-0

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC 0.020DIA GOLD

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 3129-1-00-15-00-00-08-0 PDF

Availability: 4115 pieces

Unit Price: ~~$0.17000~~

Current price of 3129-1-00-15-00-00-08-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

3129-1-00-15-00-00-08-0 Specifications

Type	Description
Series:	3129
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.020" (0.51mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.215" (5.46mm)
Length - Below Flange:	0.051" (1.30mm)
Length - Overall:	0.276" (7.01mm)
Flange Diameter:	0.050" (1.27mm)
Mounting Hole Diameter:	0.035" (0.89mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	0.031" (0.79mm)
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
