3136-3-00-15-00-00-08-0

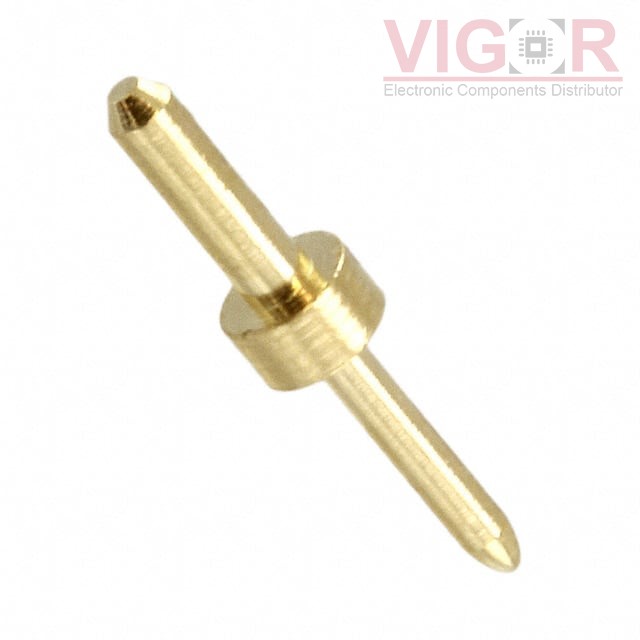

Image is for reference,
please contact us to get the real picture

Part No :: 3136-3-00-15-00-00-08-0

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC 0.040DIA GOLD

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 3136-3-00-15-00-00-08-0 PDF

Availability: 5499 pieces

Unit Price: ~~$0.20000~~

Current price of 3136-3-00-15-00-00-08-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

3136-3-00-15-00-00-08-0 Specifications

Type	Description
Series:	3136
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Double End
Pin Size - Above Flange:	0.040" (1.02mm) Dia
Pin Size - Below Flange:	0.030" (0.76mm) Dia
Length - Above Flange:	0.145" (3.68mm)
Length - Below Flange:	0.180" (4.57mm)
Length - Overall:	0.365" (9.27mm)
Flange Diameter:	0.078" (1.98mm)
Mounting Hole Diameter:	0.043" (1.09mm)
Mounting Type:	Through Hole
Termination:	Solder
Insulation:	Non-Insulated
Board Thickness:	0.125" (3.18mm)
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
