3119-2-00-15-00-00-08-0

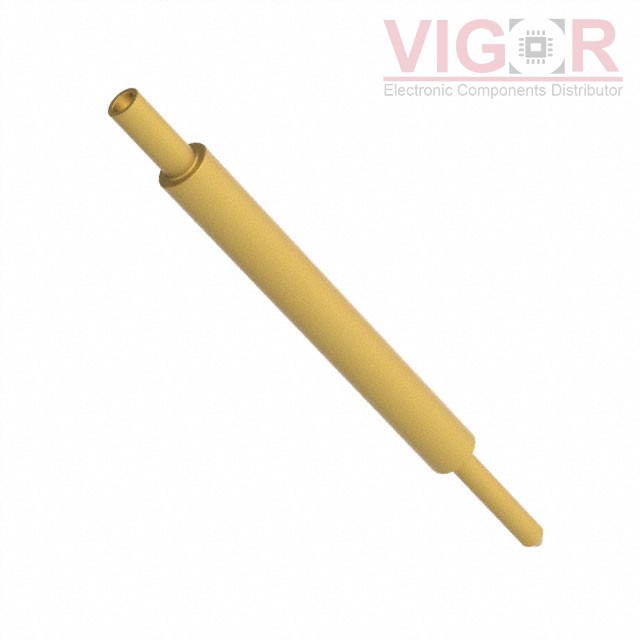

Image is for reference,
please contact us to get the real picture

Part No :: 3119-2-00-15-00-00-08-0

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC 0.025DIA GOLD

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 3119-2-00-15-00-00-08-0 PDF

Availability: 0 pieces

Unit Price: ~~$0.51600~~

Current price of 3119-2-00-15-00-00-08-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

3119-2-00-15-00-00-08-0 Specifications

Type	Description
Series:	3119
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.025" (0.64mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.150" (3.81mm)
Length - Below Flange:	0.082" (2.08mm)
Length - Overall:	0.652" (16.56mm)
Flange Diameter:	0.050" (1.27mm)
Mounting Hole Diameter:	0.035" (0.89mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	0.062" (1.57mm)
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
