3138-2-00-15-00-00-08-8

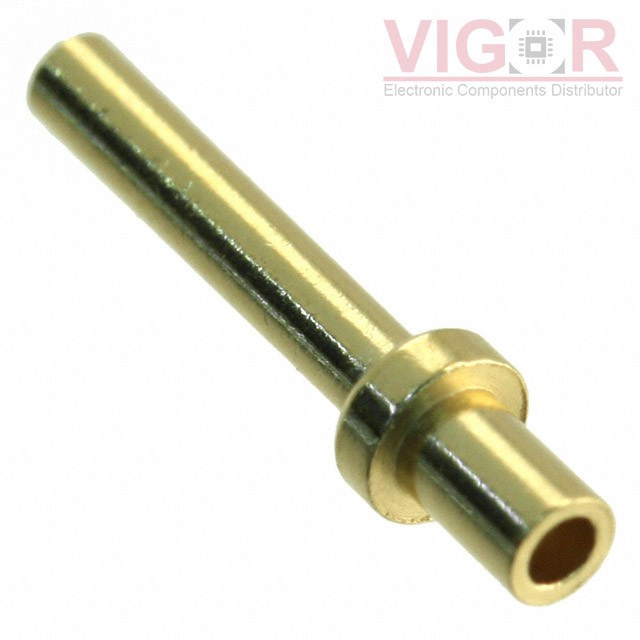

Image is for reference,
please contact us to get the real picture

Part No :: 3138-2-00-15-00-00-08-8

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC 0.050DIA GOLD

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 3138-2-00-15-00-00-08-8 PDF

Availability: 267 pieces

Unit Price: ~~$0.30000~~

Current price of 3138-2-00-15-00-00-08-8 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

3138-2-00-15-00-00-08-8 Specifications

Type	Description
Series:	3138
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.050" (1.27mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.282" (7.16mm)
Length - Below Flange:	0.094" (2.39mm)
Length - Overall:	0.407" (10.34mm)
Flange Diameter:	0.094" (2.39mm)
Mounting Hole Diameter:	0.064" (1.63mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	0.062" (1.57mm)
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
