3914-0-01-15-00-00-08-0

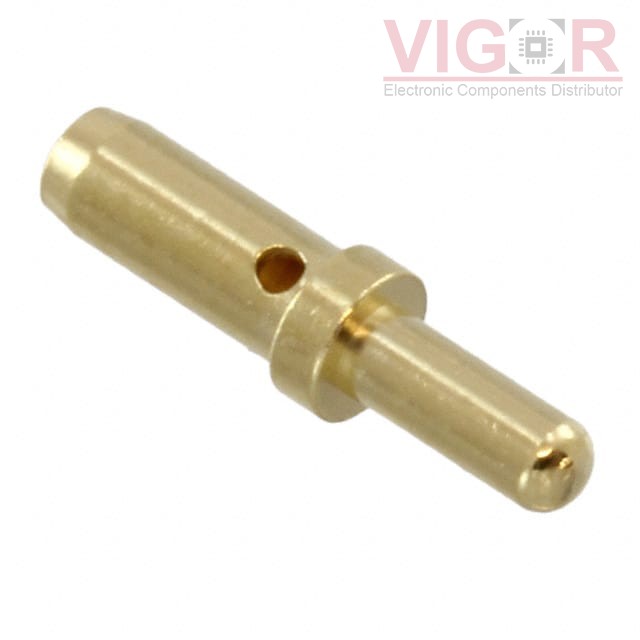

Image is for reference,
please contact us to get the real picture

Part No :: 3914-0-01-15-00-00-08-0

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC 0.077DIA GOLD

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 3914-0-01-15-00-00-08-0 PDF

Availability: 751 pieces

Unit Price: ~~$0.57000~~

Current price of 3914-0-01-15-00-00-08-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

3914-0-01-15-00-00-08-0 Specifications

Type	Description
Series:	3914
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Wire
Pin Size - Above Flange:	0.077" (1.96mm) Dia
Pin Size - Below Flange:	0.103" (2.62mm) Dia
Length - Above Flange:	0.205" (5.21mm)
Length - Below Flange:	0.250" (6.35mm)
Length - Overall:	0.501" (12.73mm)
Flange Diameter:	0.131" (3.33mm)
Mounting Hole Diameter:	-
Mounting Type:	Free Hanging (In-Line)
Termination:	Crimp
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
