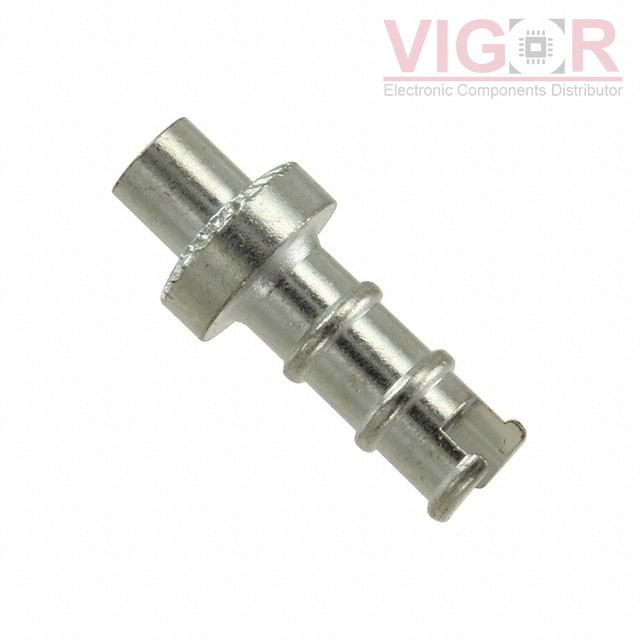

H2071ZS1

Part No :: H2071ZS1

Manufacturer: Harwin

Description: TERM TURRET SLOTTED L=9.12MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: H2071ZS1 PDF

Availability: 1439 pieces

Current price of H2071ZS1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

H2071ZS1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End, Fork
Number of Turrets:	Triple
Length - Above Board:	0.359" (9.12mm)
Length - Below Flange:	0.094" (2.39mm)
Length - Overall:	0.453" (11.51mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.187" (4.75mm)
Diameter - Turret Head:	0.125" (3.18mm)
Staking Side OD:	0.100" ~ 0.105" (2.54mm ~ 2.67mm)
Staking Side ID:	0.067" ~ 0.070" (1.70mm ~ 1.78mm)
Mounting Hole Diameter:	0.105" ~ 0.109" (2.67mm ~ 2.77mm)
Board Thickness:	0.063" (1.60mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated

Please confirm the specifications of the products when ordering.
