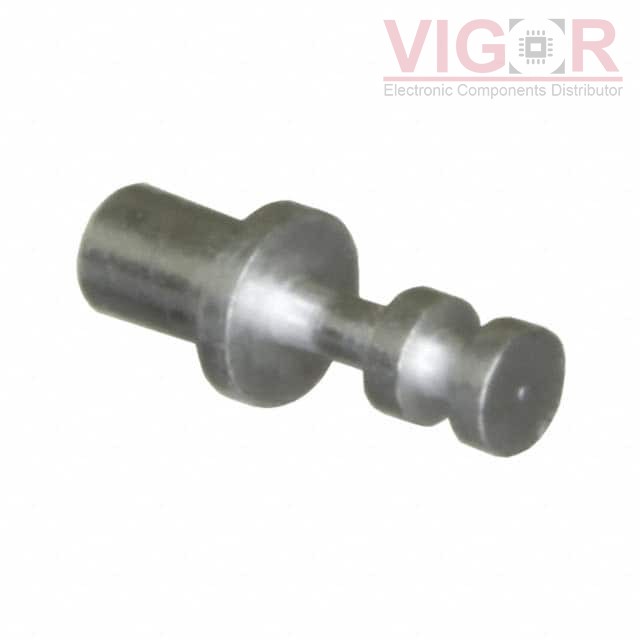

2308-2-00-80-00-00-07-0

Part No :: 2308-2-00-80-00-00-07-0

Manufacturer: Mill-Max

Description: TERM TURRET SINGLE

Catalog: Terminals - Turret Connectors

DataSheet: 2308-2-00-80-00-00-07-0 PDF

Availability: 9402 pieces

Current price of 2308-2-00-80-00-00-07-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2308-2-00-80-00-00-07-0 Specifications

Type	Description
Series:	2308
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End
Number of Turrets:	Double
Length - Above Board:	0.084" (2.13mm)
Length - Below Flange:	0.090" (2.29mm)
Length - Overall:	6.090" (154.69mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.094" (2.39mm)
Diameter - Turret Head:	0.061" (1.55mm)
Staking Side OD:	0.061" (1.55mm)
Staking Side ID:	0.044" (1.12mm)
Mounting Hole Diameter:	0.064" (1.63mm)
Board Thickness:	0.062" (1.57mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	200.0µin (5.08µm)
Insulation:	Non-Insulated
