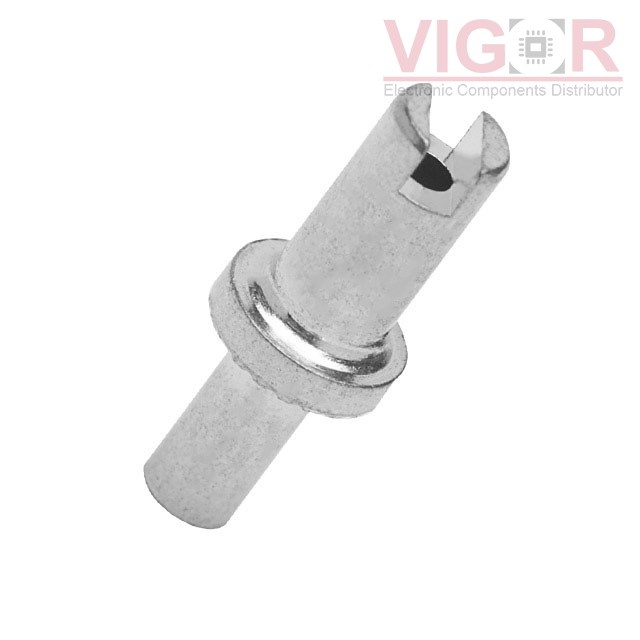

H3072-01

Part No :: H3072-01

Manufacturer: Harwin

Description: TERM TURRET HOLLOW L=6.12-6.62MM

Catalog: Terminals - Turret Connectors

DataSheet: H3072-01 PDF

Availability: 0 pieces

Current price of H3072-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

H3072-01 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End, Fork, Hollow
Number of Turrets:	Single
Length - Above Board:	0.241" ~ 0.261" (6.12mm ~ 6.62mm)
Length - Below Flange:	0.156" ~ 0.161" (3.96mm ~ 4.09mm)
Length - Overall:	0.402" ~ 0.422" (10.21mm ~ 10.71mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.156" ~ 0.161" (3.96mm ~ 4.09mm)
Diameter - Turret Head:	-
Staking Side OD:	0.076" ~ 0.079" (1.93mm ~ 2.01mm)
Staking Side ID:	-
Mounting Hole Diameter:	0.080" ~ 0.083" (2.03mm ~ 2.11mm)
Board Thickness:	0.126" (3.20mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated
