11306

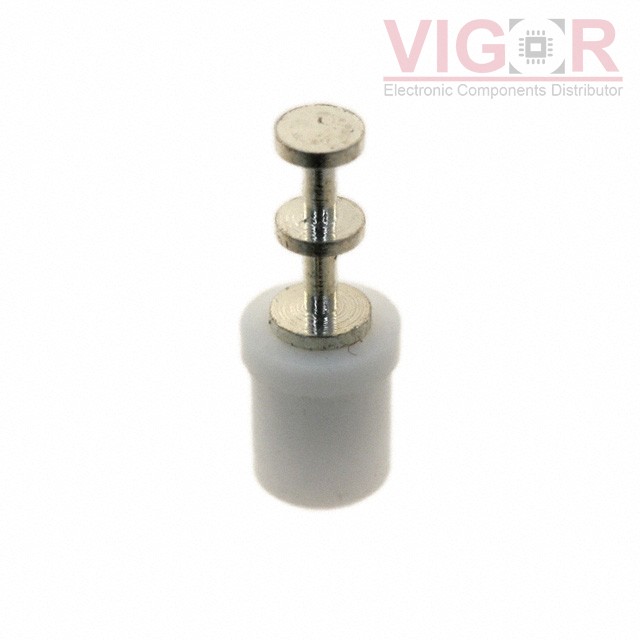

Image is for reference,
please contact us to get the real picture

Part No :: 11306

Manufacturer: Keystone Electronics Corp.

Description: TERM TURRET SINGLE L=7.37MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: 11306 PDF

Availability: 795 pieces

Unit Price: ~~$1.18000~~

Current price of 11306 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

11306 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End
Number of Turrets:	Double
Length - Above Board:	0.290" (7.37mm)
Length - Below Flange:	0.165" (4.19mm)
Length - Overall:	0.455" (11.56mm)
Mounting Type:	Through Hole
Termination:	Press-Fit
Flange Diameter:	0.172" (4.37mm)
Diameter - Turret Head:	0.093" (2.36mm)
Staking Side OD:	-
Staking Side ID:	-
Mounting Hole Diameter:	0.136" (3.45mm)
Board Thickness:	0.062" (1.57mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Insulated

Please confirm the specifications of the products when ordering.
