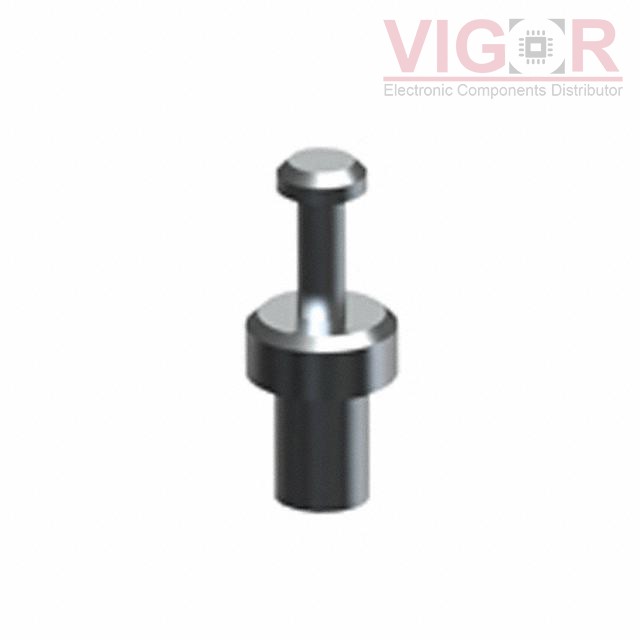

1520-1

Image is for reference,
please contact us to get the real picture

Part No :: 1520-1

Manufacturer: Keystone Electronics Corp.

Description: TERM TURRET SINGLE L=4.75MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: 1520-1 PDF

Availability: 5851 pieces

Unit Price: ~~$0.38000~~

Current price of 1520-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1520-1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End
Number of Turrets:	Single
Length - Above Board:	0.187" (4.75mm)
Length - Below Flange:	0.078" (1.98mm)
Length - Overall:	0.265" (6.73mm)
Mounting Type:	Through Hole
Termination:	Staking Flare
Flange Diameter:	0.125" (3.18mm)
Diameter - Turret Head:	0.075" (1.91mm)
Staking Side OD:	0.078" (1.98mm)
Staking Side ID:	-
Mounting Hole Diameter:	0.082" (2.08mm)
Board Thickness:	0.032" (0.81mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated

Please confirm the specifications of the products when ordering.
