2316-3-00-80-00-00-07-0

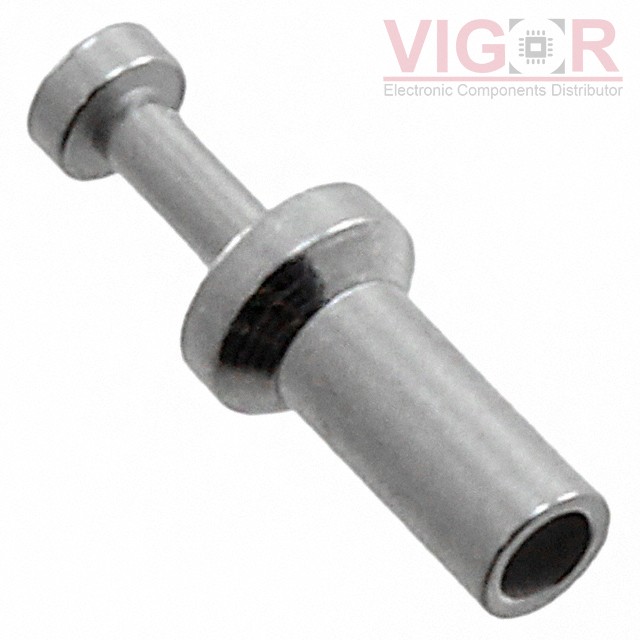

Image is for reference,
please contact us to get the real picture

Part No :: 2316-3-00-80-00-00-07-0

Manufacturer: Mill-Max

Description: TERM TURRET SINGLE L=3.84MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: 2316-3-00-80-00-00-07-0 PDF

Availability: 6745 pieces

Unit Price: ~~$0.19000~~

Current price of 2316-3-00-80-00-00-07-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2316-3-00-80-00-00-07-0 Specifications

Type	Description
Series:	2316
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End
Number of Turrets:	Single
Length - Above Board:	0.151" (3.84mm)
Length - Below Flange:	0.125" (3.18mm)
Length - Overall:	0.276" (7.01mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.094" (2.39mm)
Diameter - Turret Head:	0.060" (1.52mm)
Staking Side OD:	0.060" (1.52mm)
Staking Side ID:	0.042" (1.07mm)
Mounting Hole Diameter:	0.064" (1.63mm)
Board Thickness:	0.094" (2.39mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	200.0µin (5.08µm)
Insulation:	Non-Insulated

Please confirm the specifications of the products when ordering.
