2348-2-00-01-00-00-07-0

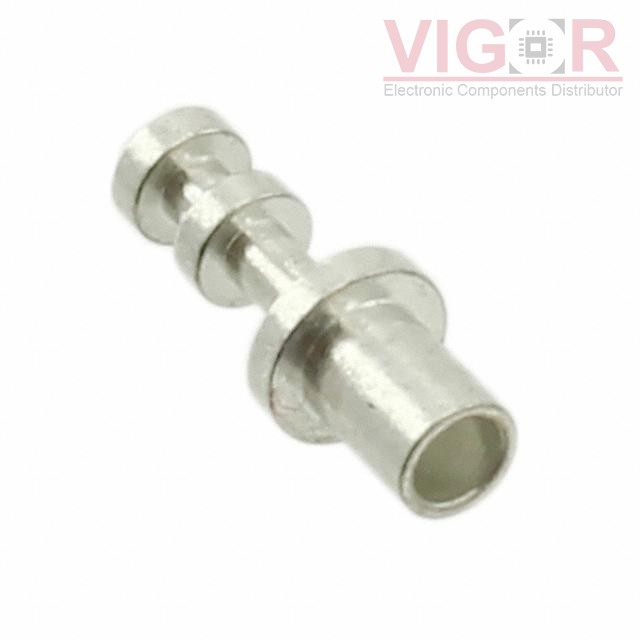

Image is for reference,
please contact us to get the real picture

Part No :: 2348-2-00-01-00-00-07-0

Manufacturer: Mill-Max

Description: TERM TURRET SINGLE L=3.96MM

Catalog: Terminals - Turret Connectors

DataSheet: 2348-2-00-01-00-00-07-0 PDF

Availability: 0 pieces

Unit Price: ~~$0.40000~~

Current price of 2348-2-00-01-00-00-07-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2348-2-00-01-00-00-07-0 Specifications

Type	Description
Series:	2348
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End
Number of Turrets:	Double
Length - Above Board:	0.156" (3.96mm)
Length - Below Flange:	0.084" (2.13mm)
Length - Overall:	0.240" (6.10mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.094" (2.39mm)
Diameter - Turret Head:	0.061" (1.55mm)
Staking Side OD:	0.061" (1.55mm)
Staking Side ID:	0.046" (1.17mm)
Mounting Hole Diameter:	0.064" (1.63mm)
Board Thickness:	0.062" (1.57mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin-Lead
Contact Finish Thickness:	200.0µin (5.08µm)
Insulation:	Non-Insulated

Please confirm the specifications of the products when ordering.
