2506-1-00-44-00-00-07-0

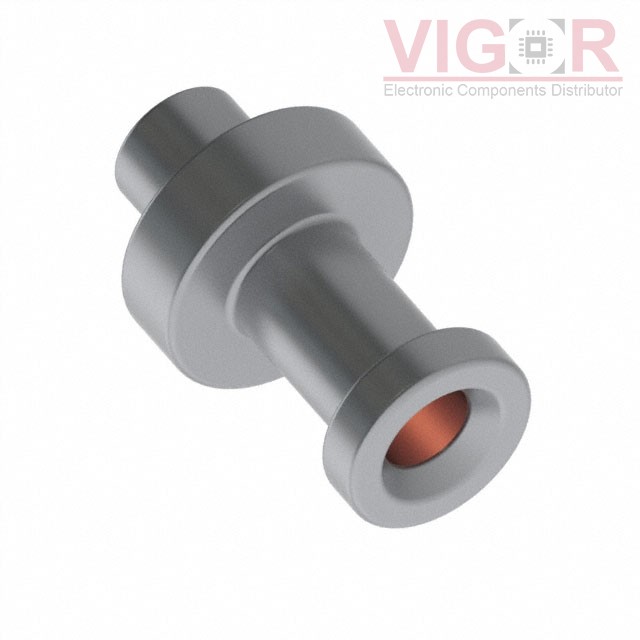

Image is for reference,
please contact us to get the real picture

Part No :: 2506-1-00-44-00-00-07-0

Manufacturer: Mill-Max

Description: TERM TURRET SINGLE L=3.96MM

Catalog: Terminals - Turret Connectors

DataSheet: 2506-1-00-44-00-00-07-0 PDF

Availability: 0 pieces

Unit Price: ~~$0.50352~~

Current price of 2506-1-00-44-00-00-07-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2506-1-00-44-00-00-07-0 Specifications

Type	Description
Series:	2506
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End
Number of Turrets:	Single
Length - Above Board:	0.156" (3.96mm)
Length - Below Flange:	0.053" (1.35mm)
Length - Overall:	0.209" (5.31mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.125" (3.18mm)
Diameter - Turret Head:	0.093" (2.36mm)
Staking Side OD:	0.062" (1.57mm)
Staking Side ID:	0.043" (1.09mm)
Mounting Hole Diameter:	0.067" (1.70mm)
Board Thickness:	0.031" (0.79mm)
Contact Material:	Brass Alloy
Contact Finish:	Silver
Contact Finish Thickness:	300.0µin (7.62µm)
Insulation:	Non-Insulated

Please confirm the specifications of the products when ordering.
