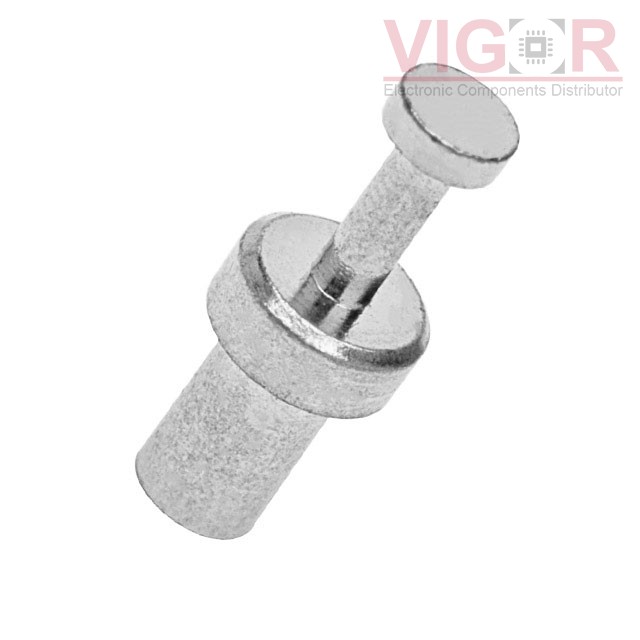

H9005-01

Part No :: H9005-01

Manufacturer: Harwin

Description: TERM TURRET SINGLE L=4.88MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: H9005-01 PDF

Availability: 0 pieces

Current price of H9005-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

H9005-01 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Terminal Type:	Single End
Number of Turrets:	Single
Length - Above Board:	0.192" (4.88mm)
Length - Below Flange:	0.125" ~ 0.130" (3.18mm ~ 3.30mm)
Length - Overall:	0.314" (7.98mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.125" (3.18mm)
Diameter - Turret Head:	0.078" (1.98mm)
Staking Side OD:	-
Staking Side ID:	0.055" (1.40mm)
Mounting Hole Diameter:	0.079" ~ 0.082" (2.01mm ~ 2.08mm)
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated
