10118194-0001LF

Part No :: 10118194-0001LF

Manufacturer: Storage & Server IO (Amphenol ICC)

VIGOR # :: 3014985

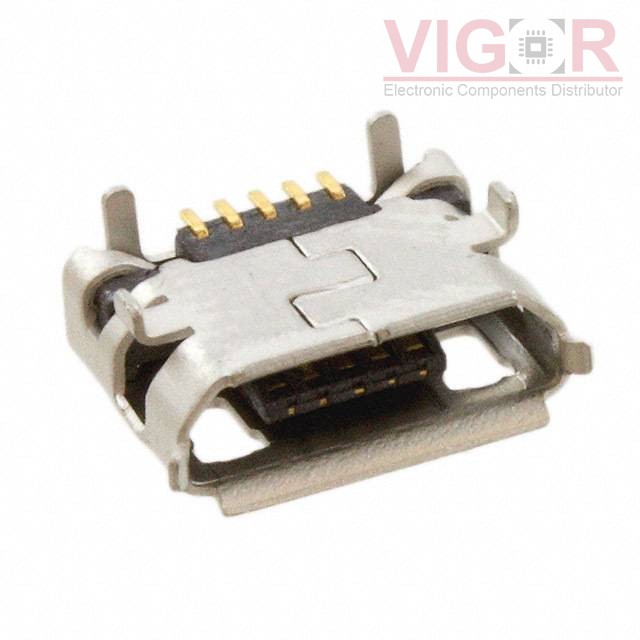

Description: CONN RCPT USB2.0 MICRO B SMD R/A

Catalog: USB, DVI, HDMI Connectors

DataSheet: 10118194-0001LF PDF

Country of origin: -

Date code: -

10118194-0001LF Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	USB - micro B
Number of Contacts:	5
Gender:	Receptacle
Specifications:	USB 2.0
Mounting Type:	Surface Mount, Right Angle; Through Hole
Mounting Feature:	Horizontal
Termination:	Solder
Features:	Solder Retention
Ingress Protection:	-
Operating Temperature:	-30°C ~ 80°C
Number of Ports:	1
Current Rating (Amps):	1.8A per Contact
Voltage - Rated:	100VAC
Mating Cycles:	10000
Shielding:	Shielded

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 71642

Shipped from

HK warehouse

Expected Shipping Date

Jan 29 - Feb 02 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.48~~	~~$0.48~~
1200	~~$0.23~~	~~$278.69~~
2400	~~$0.21~~	~~$514.51~~
6000	~~$0.20~~	~~$1 214.82~~
8400	~~$0.19~~	~~$1 600.70~~
12000	~~$0.18~~	~~$2 215.32~~
30000	~~$0.18~~	~~$5 466.60~~
60000	~~$0.18~~	~~$10 719.00~~

Current price of 10118194-0001LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
