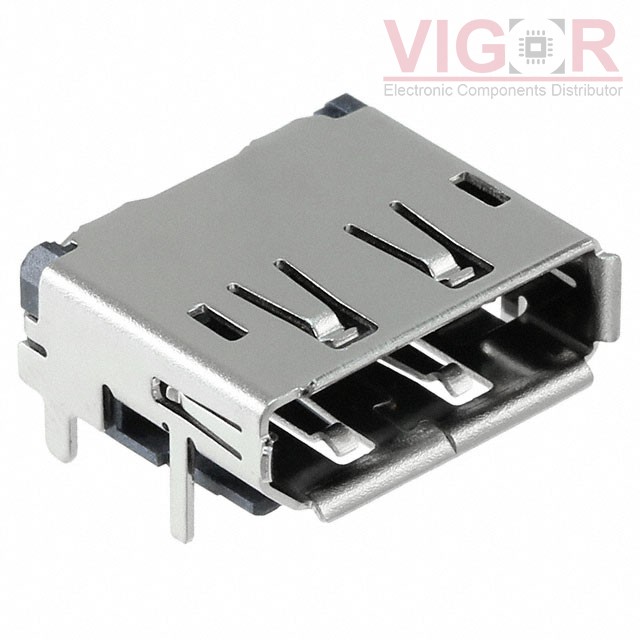

0472720026

Part No :: 0472720026

Manufacturer: Woodhead - Molex

VIGOR # :: 4626327

Description: CONN RCPT DISPLAYPORT 20P SMD RA

Catalog: USB, DVI, HDMI Connectors

DataSheet: 0472720026 PDF

Country of origin: -

Date code: -

0472720026 Specifications

Type	Description
Series:	47272
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Connector Type:	DisplayPort
Number of Contacts:	20
Gender:	Receptacle
Specifications:	-
Mounting Type:	Surface Mount, Right Angle; Through Hole
Mounting Feature:	Horizontal
Termination:	Solder
Features:	Latch Lock
Ingress Protection:	-
Operating Temperature:	-20°C ~ 85°C
Number of Ports:	1
Current Rating (Amps):	0.5A
Voltage - Rated:	40VAC
Mating Cycles:	10000
Shielding:	Shielded

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Apr 15 - Apr 19 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of 0472720026 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

ZX62D-AB-5P8

CONN RCPT USB2.0 MICRO AB SMD RA

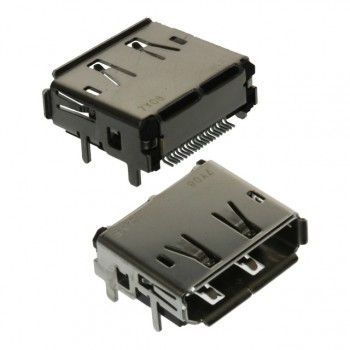

DP1RD20JQ1
