CX5Z-A2B2C5-70-8.0D18

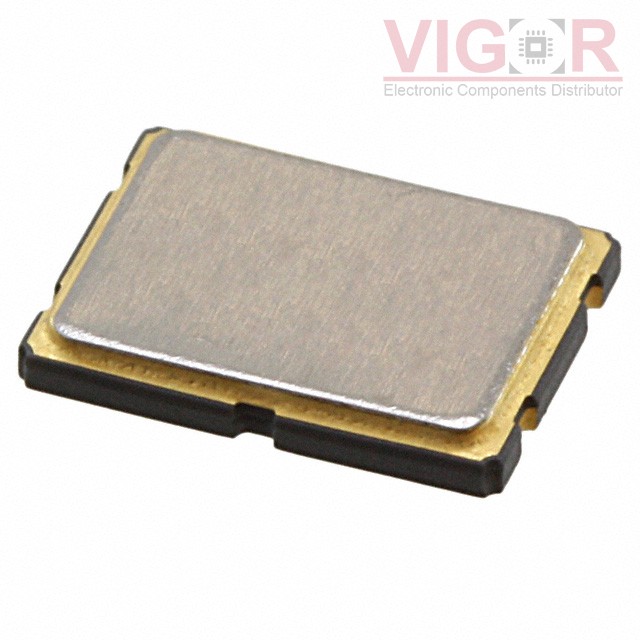

Image is for reference,
please contact us to get the real picture

Part No :: CX5Z-A2B2C5-70-8.0D18

Manufacturer: Cardinal Components

Description: CRYSTAL 8.0000MHZ 18PF SMD

Catalog: Crystals

DataSheet: CX5Z-A2B2C5-70-8.0D18 PDF

Availability: 4061 pieces

Unit Price: ~~$0.95000~~

Current price of CX5Z-A2B2C5-70-8.0D18 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CX5Z-A2B2C5-70-8.0D18 Specifications

Type	Description
Series:	CX5
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	MHz Crystal
Frequency:	8 MHz
Frequency Stability:	±50ppm
Frequency Tolerance:	±20ppm
Load Capacitance:	18pF
ESR (Equivalent Series Resistance):	70 Ohms
Operating Mode:	Fundamental
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SMD, No Lead
Size / Dimension:	0.283" L x 0.205" W (7.20mm x 5.20mm)
Height - Seated (Max):	0.051" (1.30mm)
