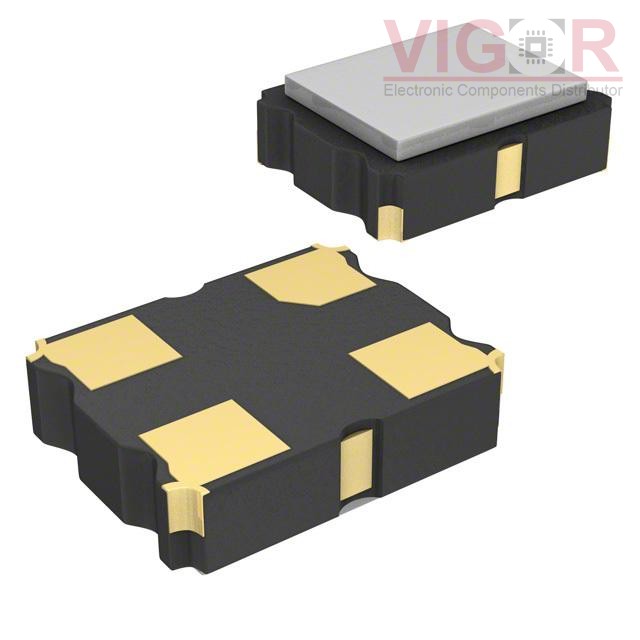

TG2520SMN 20.0000M-MCGNNM3

Part No :: TG2520SMN 20.0000M-MCGNNM3

Manufacturer: Epson

Description: XTAL OSC TCXO 20MHZ CSW 2.8~3.3V

Catalog: Oscillators

DataSheet: TG2520SMN 20.0000M-MCGNNM3 PDF

Availability: 267 pieces

Current price of TG2520SMN 20.0000M-MCGNNM3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TG2520SMN 20.0000M-MCGNNM3 Specifications

Type	Description
Series:	TG2520SMN
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Base Resonator:	Crystal
Type:	TCXO
Frequency:	20 MHz
Function:	-
Output:	Clipped Sine Wave
Voltage - Supply:	2.8V ~ 3.3V
Frequency Stability:	±500ppb
Absolute Pull Range (APR):	-
Operating Temperature:	-40°C ~ 85°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	1.5mA
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SMD, No Lead
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.031" (0.80mm)
