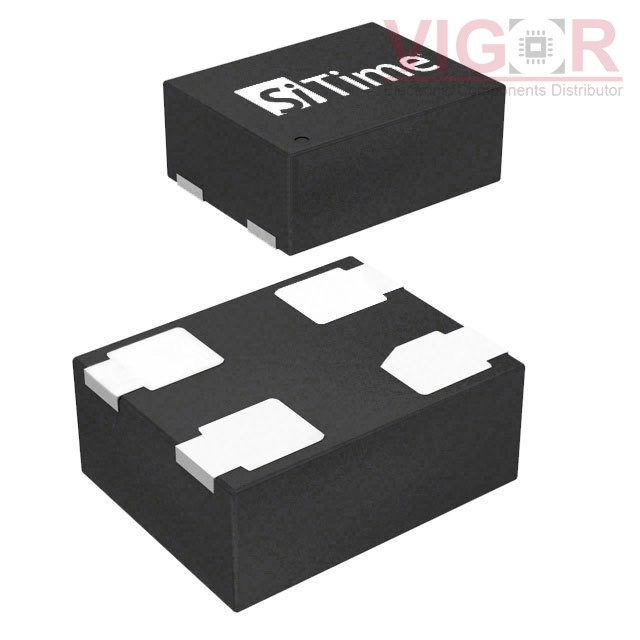

SIT1602BC-72-XXE-28.636300G

Part No :: SIT1602BC-72-XXE-28.636300G

Manufacturer: SiTime

VIGOR # :: 2586219

Description: MEMS OSC XO 28.6363MHZ H/LV-CMOS

Catalog: Oscillators

DataSheet: SIT1602BC-72-XXE-28.636300G PDF

Country of origin: Confirming

Date code: TBC

SIT1602BC-72-XXE-28.636300G Specifications

Type	Description
Series:	SiT1602B
Package:	Strip
Part Status:	Active
Base Resonator:	MEMS
Type:	XO (Standard)
Frequency:	28.6363 MHz
Function:	Enable/Disable
Output:	HCMOS, LVCMOS
Voltage - Supply:	2.25V ~ 3.63V
Frequency Stability:	±25ppm
Absolute Pull Range (APR):	-
Operating Temperature:	-20°C ~ 70°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	4.5mA
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SMD, No Lead
Size / Dimension:	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max):	0.031" (0.80mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: Available on Request ?

Shipped from

HK warehouse

Expected Shipping Date

Awaiting confirmation

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.3300~~	~~$1.33~~
250	~~$0.9162~~	~~$229.04~~

Current price of SIT1602BC-72-XXE-28.636300G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
