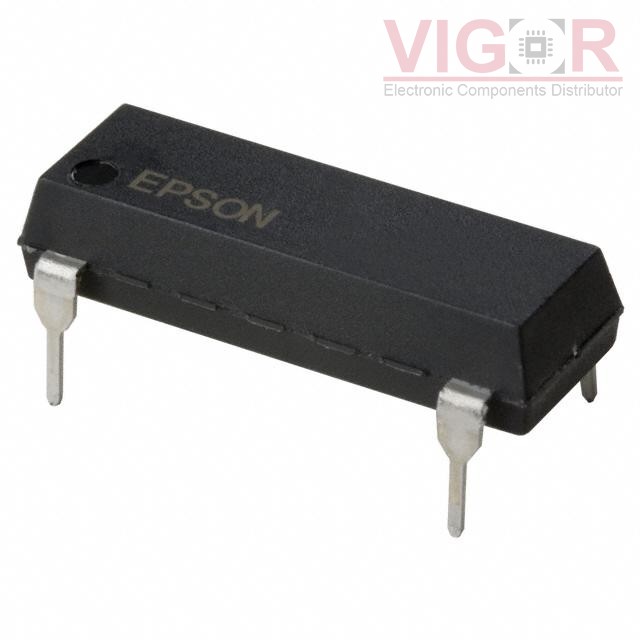

SGR-8002DB-PTM

Part No :: SGR-8002DB-PTM

Manufacturer: Epson

VIGOR # :: 1992198

Description: XTAL OSC PROG XO TTL 5V 100PPM

Catalog: Programmable Oscillators

DataSheet: SGR-8002DB-PTM PDF

Country of origin: -

Date code: -

SGR-8002DB-PTM Specifications

Type	Description
Series:	SG-8002
Package:	Tube
Part Status:	Active
Base Resonator:	Crystal
Type:	XO (Standard)
Programmable Type:	Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Available Frequency Range:	1 MHz ~ 55.0 MHz
Function:	Enable/Disable
Output:	TTL
Voltage - Supply:	5V
Frequency Stability:	±100ppm
Frequency Stability (Total):	-
Operating Temperature:	-40°C ~ 85°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	45mA
Ratings:	-
Mounting Type:	Through Hole
Package / Case:	14-DIP, 4 Leads (Full Size)
Size / Dimension:	0.780" L x 0.250" W (19.81mm x 6.36mm)
Height - Seated (Max):	0.209" (5.30mm)
