CBRDFSH1-100 TR13

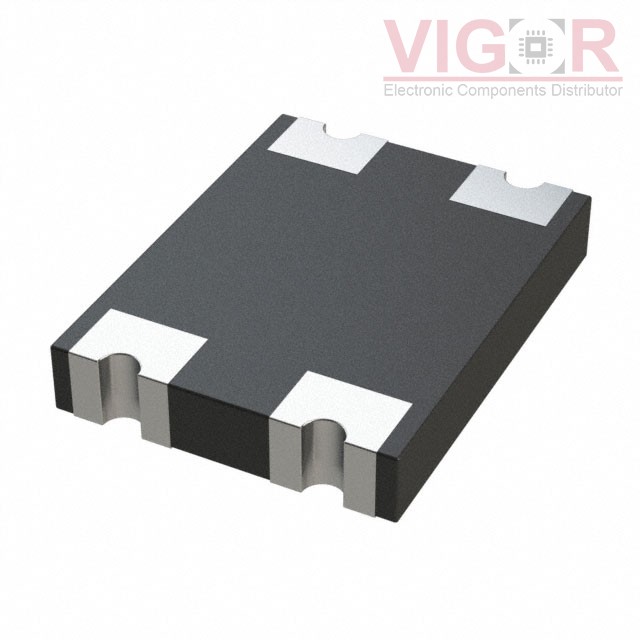

Image is for reference,
please contact us to get the real picture

Part No :: CBRDFSH1-100 TR13

Manufacturer: Central Semiconductor

Description: 1A,100V SURFACE MOUNT RECTIFIER-

Catalog: Diodes - Bridge Rectifiers

DataSheet: CBRDFSH1-100 TR13 PDF

Availability: 23397 pieces

Unit Price: ~~$0.66000~~

Current price of CBRDFSH1-100 TR13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CBRDFSH1-100 TR13 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Type:	Single Phase
Technology:	Schottky
Voltage - Peak Reverse (Max):	100 V
Current - Average Rectified (Io):	1 A
Voltage - Forward (Vf) (Max) @ If:	0.85 V @ 1 A
Current - Reverse Leakage @ Vr:	200 µA @ 100 V
Operating Temperature:	-55°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	4-LDFN
Supplier Device Package:	4-BR DFN

Please confirm the specifications of the products when ordering.
