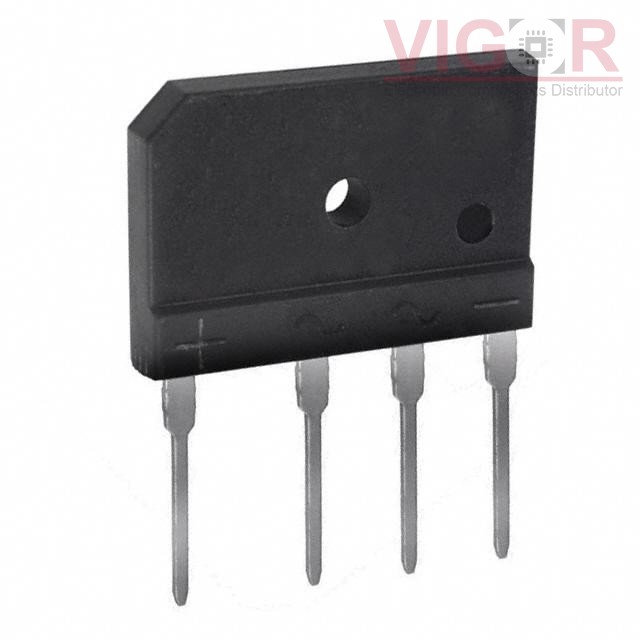

GBJ801-F

Part No :: GBJ801-F

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 2990597

Description: BRIDGE RECT 1PHASE 100V 8A GBJ

Catalog: Diodes - Bridge Rectifiers

DataSheet: GBJ801-F PDF

Country of origin: -

Date code: -

GBJ801-F Specifications

Type	Description
Series:	-
Package:	TubeTube
Part Status:	Active
Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	100 V
Current - Average Rectified (Io):	8 A
Voltage - Forward (Vf) (Max) @ If:	1 V @ 4 A
Current - Reverse Leakage @ Vr:	5 µA @ 100 V
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-SIP, GBJ
Supplier Device Package:	GBJ

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 156

Shipped from

HK warehouse

Expected Shipping Date

Jan 03 - Jan 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.57~~	~~$1.57~~
15	~~$1.40~~	~~$20.98~~
105	~~$1.09~~	~~$114.52~~

Current price of GBJ801-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

GBJ25005-G

BRIDGE RECT 1PHASE 50V 25A GBJ

GBPC2504-E4/51

BRIDGE RECT 1PHASE 400V 25A GBPC

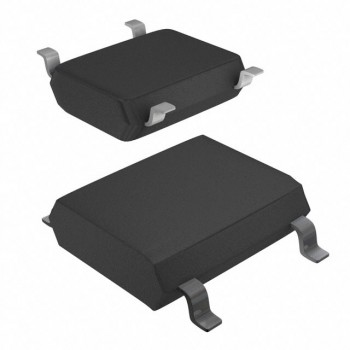

SDB157L-TP
