309CMQ135

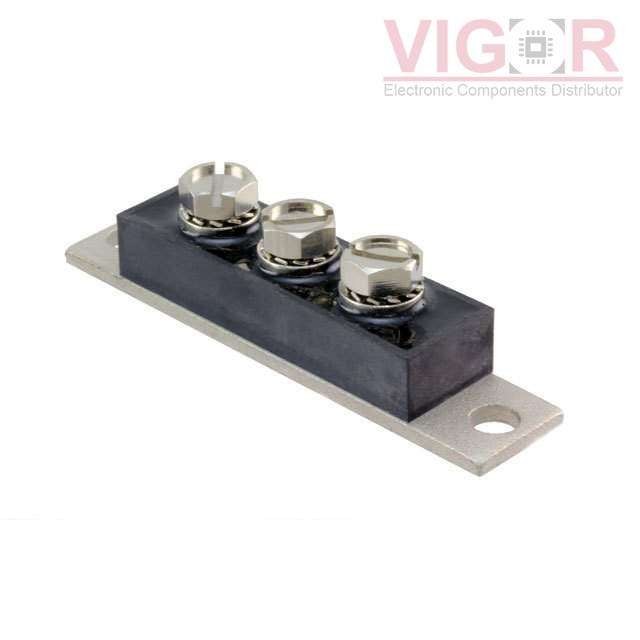

Image is for reference,
please contact us to get the real picture

Part No :: 309CMQ135

Manufacturer: SMC Diode Solutions

Description: DIODE SCHOTTKY 135V 150A PRM4

Catalog: Diodes - Rectifiers - Arrays

DataSheet: 309CMQ135 PDF

Availability: 0 pieces

Unit Price: ~~$54.07318~~

Current price of 309CMQ135 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

309CMQ135 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Diode Configuration:	1 Pair Common Cathode
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	135 V
Current - Average Rectified (Io) (per Diode):	150A
Voltage - Forward (Vf) (Max) @ If:	1.03 V @ 150 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	3 mA @ 135 V
Operating Temperature - Junction:	-55°C ~ 175°C
Mounting Type:	Chassis Mount
Package / Case:	PRM4
Supplier Device Package:	PRM4 (Isolated)

Please confirm the specifications of the products when ordering.
