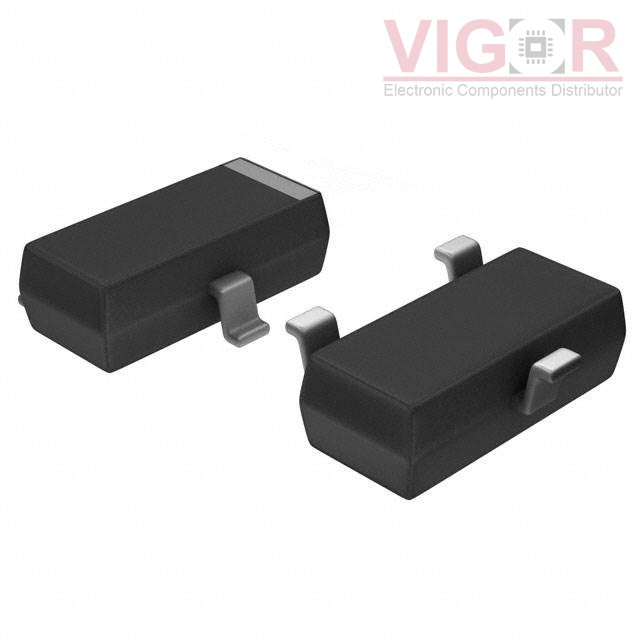

BAW56-TP

Part No :: BAW56-TP

Manufacturer: Micro Commercial Components (MCC)

VIGOR # :: 2943201

Description: DIODE ARRAY GP 75V 250MA SOT23

Catalog: Diodes - Rectifiers - Arrays

DataSheet: BAW56-TP PDF

Country of origin: -

Date code: -

BAW56-TP Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Configuration:	1 Pair Common Anode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	75 V
Current - Average Rectified (Io) (per Diode):	250mA (DC)
Voltage - Forward (Vf) (Max) @ If:	855 mV @ 10 mA
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	4 ns
Current - Reverse Leakage @ Vr:	2.5 µA @ 75 V
Operating Temperature - Junction:	-55°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	TO-236-3, SC-59, SOT-23-3
Supplier Device Package:	SOT-23
