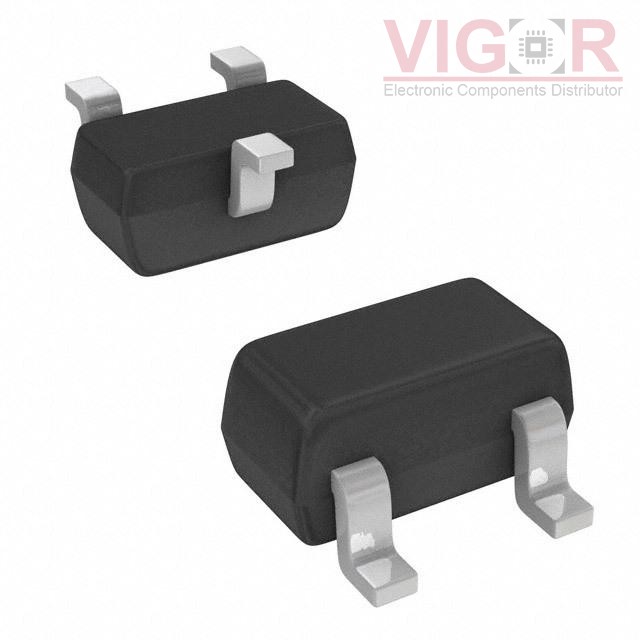

BAT54AT-TP

Part No :: BAT54AT-TP

Manufacturer: Micro Commercial Components (MCC)

VIGOR # :: 2943882

Description: DIODE ARRAY SCHOTTKY 30V SOT523

Catalog: Diodes - Rectifiers - Arrays

DataSheet: BAT54AT-TP PDF

Country of origin: -

Date code: -

BAT54AT-TP Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Configuration:	1 Pair Common Anode
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io) (per Diode):	200mA
Voltage - Forward (Vf) (Max) @ If:	1 V @ 100 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	5 ns
Current - Reverse Leakage @ Vr:	2 µA @ 25 V
Operating Temperature - Junction:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	SOT-523
Supplier Device Package:	SOT-523
