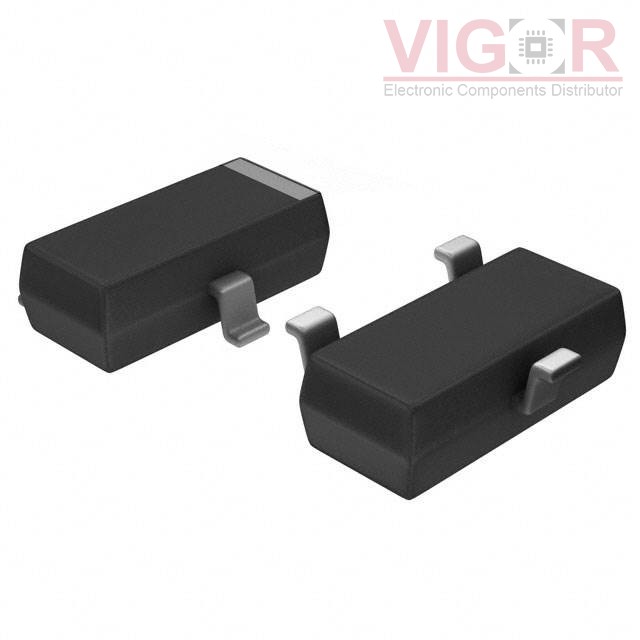

BAV23S

Part No :: BAV23S

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 2944383

Description: DIODE ARRAY GP 250V 200MA SOT23

Catalog: Diodes - Rectifiers - Arrays

DataSheet: BAV23S PDF

Country of origin: -

Date code: -

BAV23S Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Configuration:	1 Pair Series Connection
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	250 V
Current - Average Rectified (Io) (per Diode):	200mA
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 200 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	50 ns
Current - Reverse Leakage @ Vr:	100 nA @ 250 V
Operating Temperature - Junction:	150°C (Max)
Mounting Type:	Surface Mount
Package / Case:	TO-236-3, SC-59, SOT-23-3
Supplier Device Package:	SOT-23-3 (TO-236)
