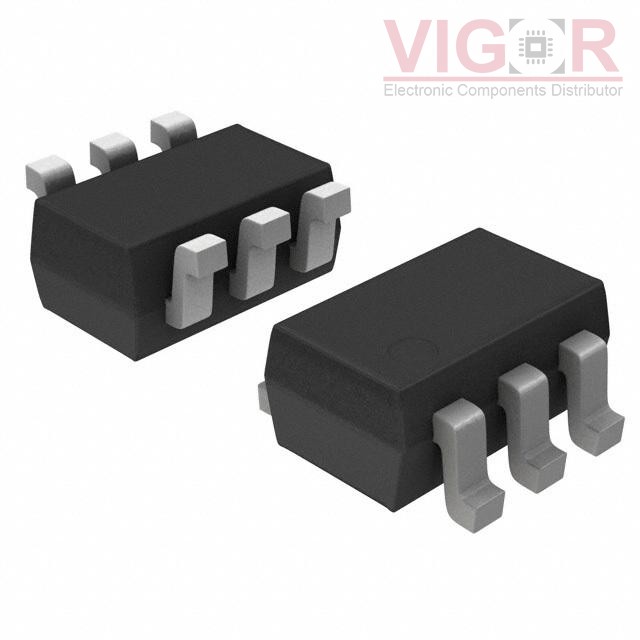

BAW56DW-TP

Part No :: BAW56DW-TP

Manufacturer: Micro Commercial Components (MCC)

VIGOR # :: 2944397

Description: DIODE ARRAY GP 75V 150MA SOT363

Catalog: Diodes - Rectifiers - Arrays

DataSheet: BAW56DW-TP PDF

Country of origin: -

Date code: -

BAW56DW-TP Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Configuration:	2 Pair Common Anode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	75 V
Current - Average Rectified (Io) (per Diode):	150mA
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 150 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	4 ns
Current - Reverse Leakage @ Vr:	2.5 µA @ 75 V
Operating Temperature - Junction:	-55°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	6-TSSOP, SC-88, SOT-363
Supplier Device Package:	SOT-363
